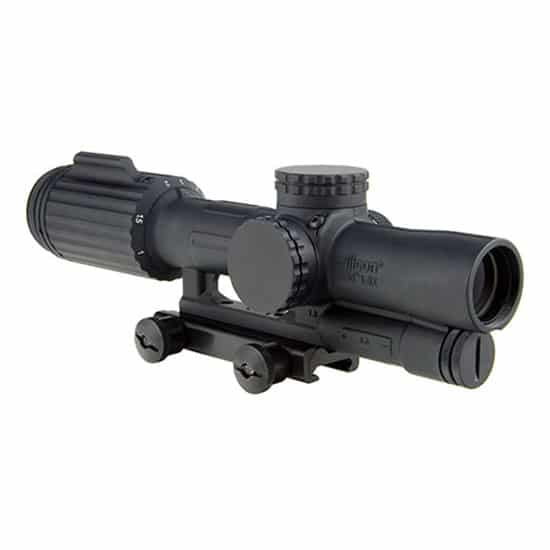

Trijicon VCOG 1-6×24 | Seg Circle/Crosshair | 1600004

The Trijicon VCOG 1-6×24 is a variable-power riflescope designed for users who need a sight capable of both close-range and longer-range marksmanship. It uses a first-focal-plane, LED-illuminated segmented circle with crosshair reticle calibrated to .308/175 grain. The optic is built around a forged 7075-T6 aircraft-aluminum-alloy housing and includes a quick-release TA51 thumb-screw mount.

Product Specifications

• The UPC is 719307320048.
• The magnification range is 1-6x.
• The objective lens measures 24 mm.
• The field of view at 100 yards is 95 to 15.9 ft (wide to narrow).
• The finish is Matte Black.
• The reticle is a red segmented circle with crosshair located in the first focal plane.
• The reticle calibration is .308 / 175 grain.
• The illumination source is LED with 6 brightness settings.
• Power is supplied by 1 AA (alkaline or lithium) and the package includes a TA51 quick-release mount, a lithium AA battery, LENSPEN, sticker, manual, and warranty card; battery life is approximately 700 hours continuous at setting 4 when using a lithium cell.
• Eye relief is 4 inches and is constant across the magnification range.
• The exit pupil measures approximately 0.41–0.15 in.
• The overall weight is 23.2 oz (without mount or battery).
• The external dimensions are 10.05 x 2.51 x 2.73 in.
• The housing is constructed from forged 7075-T6 aircraft-aluminum alloy.
• Adjustment travel provides 90 MOA total for elevation and 90 MOA total for windage with 35 MOA per revolution.

Engineered for shooters who demand a versatile optic, the VCOG 1-6×24 combines durable construction, a first-focal-plane ranging reticle, and practical illumination to support precision work and fast target acquisition. Its features make it well suited to competition shooting and precision marksmanship practice where quick transitions and accurate holds are required.
