Trijicon VCOG 1-6×24 | Horseshoe Dot/Crosshair

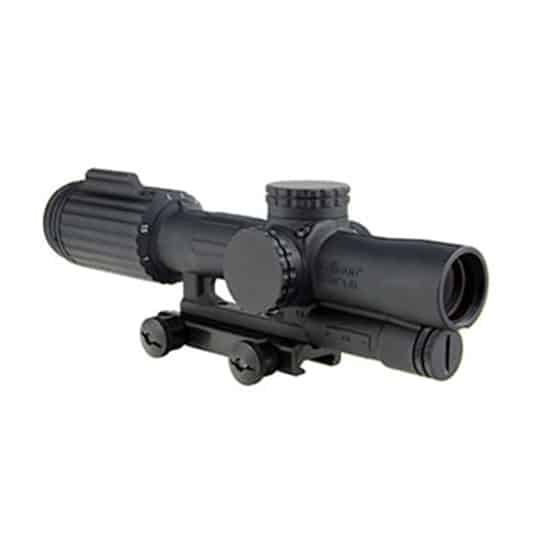

The Trijicon VCOG 1-6×24 is a variable powered riflescope designed to bridge close-quarters engagement and longer-range marksmanship. It uses a first-focal-plane horseshoe-dot/crosshair reticle calibrated for .308 with 175-grain reference loads so subtensions remain accurate across the 1-6x magnification range. The optic is built with a forged 7075-T6 aircraft-aluminum-alloy housing and ships with a TA51 thumb-screw mount and a lithium AA battery. The LED-illuminated green reticle offers multiple brightness settings for varied lighting conditions.

Product Specifications

• The magnification range is 1-6x for quick transitions between close and mid-range targets.
• The objective lens diameter is 24 mm to balance compactness and light gathering.
• The reticle pattern is a Horseshoe Dot / Crosshair in the first focal plane.
• The reticle color for both day and night settings is green.
• The reticle is calibrated for .308 / 175 grain reference loads for bullet drop compensation and ranging.
• The optic uses a first focal plane reticle so subtensions scale with magnification.
• The constant eye relief measures 4 in.
• The exit pupil is listed as 0.41 – 0.15 in.
• The field of view is listed as 18.0 – 3.0 degrees.
• The field of view at 100 yards is listed as 95 – 15.9 ft.
• The housing is made from forged 7075-T6 aircraft-aluminum-alloy for durability.
• The weight is 23.2 oz (without mount or battery).
• Power is provided by 1 AA (alkaline or lithium) battery; a lithium AA is included in the package.
• Manufacturer lists adjustment travel as Elevation: 90 MOA total, Windage: 90 MOA total, Per Revolution: 35 MOA.
• Package includes TA51 thumb-screw mount, 1 lithium AA battery, LENSPEN (TA56), Trijicon sticker, manual, and warranty card.
• The UPC is 719307320680.
• Battery-life information in the provided source is inconsistent (listed as both 1,400 hours and 700 hours at brightness setting 4); see notes.

With a true 1-6x zoom, first-focal-plane BDC reticle, and rugged forged-aluminum construction, the VCOG is intended for shooters who need one optic to cover rapid target acquisition at low magnification and usable holdovers at higher magnification. Its constant eye relief and included TA51 mount simplify integration on a range of rifle platforms, and the packaged battery and cleaning tool support immediate use in the field.
