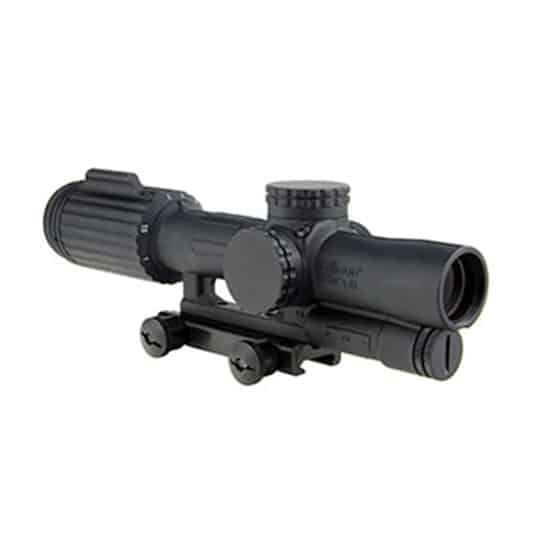

Trijicon VCOG 1-6×24 | Green Circle | .223/77gr

The Trijicon VCOG 1-6×24 is a rugged, variable powered riflescope built for close-quarters and mid-range marksmanship. It features a first-focal-plane, bullet-drop-compensating segmented-circle/crosshair reticle calibrated for .223 / 77 grain. The sight uses a forged 7075-T6 aircraft-aluminum-alloy housing and a single AA battery for illuminated reticle operation.

Product Specifications

• The magnification range is 1-6x for fast transitions between close and extended engagements.
• The objective measures 24 mm for compact overall length and light gathering.
• This optic includes a bullet drop compensator and is listed as Yes for BDC functionality.
• The reticle pattern is a Segmented Circle / Crosshair for rapid targeting and range holds.
• The reticle color is Green for both day and night use per the manufacturer data.
• The reticle calibration is set to .223 / 77 grain.
• The sight supports the Bindon Aiming Concept for both-eyes-open aiming techniques.
• The focal plane is the first focal plane so subtensions remain true at all magnifications.
• The eye relief is a constant 4 in. for consistent cheek weld and shooting position.
• The field of view is 18.0 – 3.0 degrees (equivalent to 95 – 15.9 ft @ 100 yds across the magnification range).
• The housing is forged 7075-T6 aircraft-aluminum-alloy for high durability.
• The optic is rated waterproof to 20 meters (66 ft.).
• The weight is 23.2 oz (without mount or battery) and overall dimensions are 10.05 x 2.51 x 2.73 in.
• The package includes a TA51 thumb screw mount; 1 lithium AA battery; LENSPEN; Trijicon sticker; manual; and warranty card.
• The UPC for this product is 719307320635.

The VCOG blends robust construction with practical features: a first-focal-plane BDC reticle, compact 1-6x magnification, and a common AA battery power source. Its forged 7075-T6 alloy body and waterproof rating make it suited to demanding field use while the calibrated reticle simplifies range estimation for .223/77gr ballistics. Whether used for close-quarters work or deliberate engagement at extended ranges, the VCOG is engineered to provide consistent optical performance.
