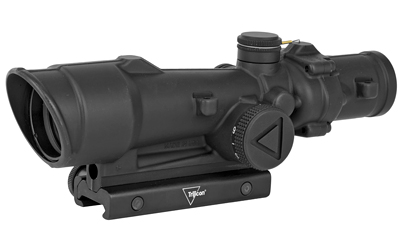

Trijicon ACOG 3.5×35 LED | Red Chevron .223

The Trijicon ACOG 3.5×35 LED is a fixed-power riflescope with an illuminated red chevron reticle calibrated for .223. It uses an LED illumination system powered by a single AA battery and offers six user-selectable brightness settings with an off position between each setting. Constructed from forged 7075-T6 aircraft aluminum, the ACOG is designed for reliability and compatibility with most 3.5×35 ACOG accessories; this package includes the TA51 flattop mount and a spare AA battery.

Product Specifications

• The magnification is 3.5x.
• The objective lens diameter is 35 mm.
• The reticle is a red chevron calibrated to .223 with bullet drop compensation.
• The illumination source is an LED with 6 brightness settings.
• The power source is 1 AA alkaline or lithium battery, and a battery is included.
• The listed battery life is over 12,000 hours on setting #4 using the supplied alkaline battery at 21°C (70°F).
• The housing is made from forged 7075-T6 aircraft aluminum.
• The unit includes the TA51 flattop adapter mount.
• The length is 8.0 inches.
• The weight is 16.8 ounces without mount.
• The eye relief is 2.4 inches (61.0 mm).
• The exit pupil is 0.39 inches (10.0 mm).
• The field of view is 5.5 degrees, which is 28.9 feet at 100 yards.
• The adjustment increment is 2 clicks per inch at 100 m with an adjustment range of 40 MOA total travel.
• The UPC is 719307320956.

This ACOG variant is well suited to short- to medium-range precision work and tactical/competition applications where a fast, clear aiming point and ballistic compensation are desirable. Its battery-powered LED illumination and durable forged-aluminum construction make it a practical optic for shooters who need consistent performance across varied lighting conditions.
