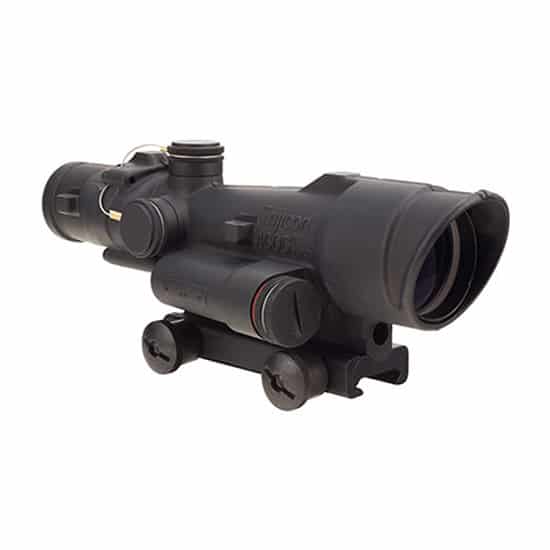

Trijicon ACOG 3.5×35 LED | Horseshoe Dot | .223

The Trijicon ACOG 3.5×35 LED is a compact, fixed-magnification optic engineered for use on .223-caliber rifles. It combines a rugged forged 7075-T6 aluminum housing with an LED-illuminated horseshoe dot reticle and user-selectable brightness control. The LED ACOG runs on a single AA battery with long operational life and is compatible with night vision devices and common 3.5×35 ACOG accessories.

Applications: precision/target shooting and varmint/hunting use on .223-caliber platforms.

Product Specifications

• The magnification is 3.5x.
• The objective size is 35 mm.
• The reticle pattern is a Horseshoe Dot.
• The calibration is .223.
• The day reticle color is Greem.
• The night reticle color is Green.
• The illumination source is LED with 6 selectable brightness settings and an off position between settings.
• The power is supplied by 1 AA alkaline or lithium battery, and battery life is noted as over 12,000 hours on setting #4.
• The housing material is forged 7075-T6 aircraft aluminum.
• The eye relief is 2.4 in. / 61.0 mm.
• The exit pupil is 0.39 in. / 10.0 mm.
• The field of view is 5.5 degrees (approximately 28.9 ft @ 100 yd).
• The overall length is 8.0 in. and the dimensions are 8.0 x 3.0 x 2.6 in (203 x 76 x 66 mm).
• The weight is 16.8 oz without mount.
• The mount included is a TA51 thumbscrew flattop adapter, and the package also includes a AA battery, LENSPEN (TA56), lanyard assemblies, Trijicon sticker, manual, and warranty card.
• The adjustment increments are 2 clicks per inch @ 100 m with a total adjustment range of 40 MOA.
• The product UPC is 719307320987.

The ACOG 3.5×35 LED blends proven ACOG durability with selectable LED reticle brightness for versatile daylight and low-light use. Its compact footprint and .223 calibration make it a practical optic for precision shooting and field use where a robust, low-maintenance sighting solution is required.
