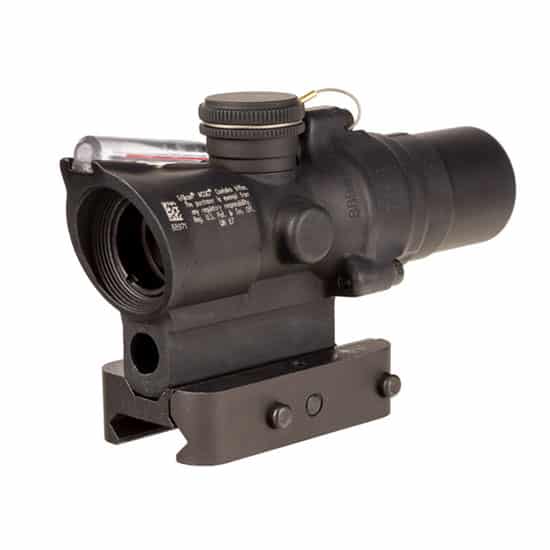

Trijicon ACOG 1.5X16S | 1.5x 16mm | RTR .223

The Trijicon ACOG 1.5x16S is a compact, fixed-magnification riflescope designed for fast target acquisition and reliable performance in varied lighting conditions. It uses dual, battery-free illumination—fiber optics for daylight adjustment and tritium for low-light glow—to keep the reticle visible without external power. The sight is built in a forged 7075-T6 aluminum housing intended for high durability and is offered with Trijicon’s Q-LOC quick-mount technology for tool-less mounting and repeatable return-to-zero.

Product Specifications

• The magnification is 1.5x for a close-to-medium engagement focus.
• The objective measures 16mm to balance a compact profile with usable light transmission.
• The reticle pattern is the Rapid Target (RTR) designed for quick acquisition with .223 holdovers.
• The day reticle color is Red for contrast against typical daylight targets.
• Bullet drop compensation (BDC) is Yes for calibrated holdover references.
• The listed caliber reference is 223 Rem / 55 gr as indicated by the reticle calibration.
• The Bindon Aiming Concept (BAC) compatibility is Yes for rapid eye/optic alignment techniques.
• The illumination source is Fiber Optics & Tritium providing automatic daylight adjustment and low-light glow without batteries.
• Adjustment increments are 2 clicks per inch @ 100 yards for windage/elevation tuning.
• The eye relief is 2.4 in. (60.96 mm) to allow a consistent shooting position.
• The exit pupil measures 0.42 in. (10.67 mm) for the optic’s magnification and objective combination.
• The field of view is 7.4° for the wider view typical of 1.5x ACOG models.
• The mount is the Trijicon Q-LOC Technology Mount for a one-handed, tool-less attachment and repeatable zero.
• The housing material is Forged 7075-T6 Aluminum for strength and durability.
• The UPC is 719307617209.

This ACOG is intended for shooters who need a compact, low-maintenance optic for rapid engagements and competitive speed stages where a wide field of view and durable construction matter. Its battery-free illumination and rugged forged housing make it well suited for demanding use-cases where reliability and repeatable performance are priorities.

Owners commonly note the optic’s robust build quality and the convenience of battery-free illumination as standout features—attributes that keep the ACOG relevant for professional and serious civilian use alike.
