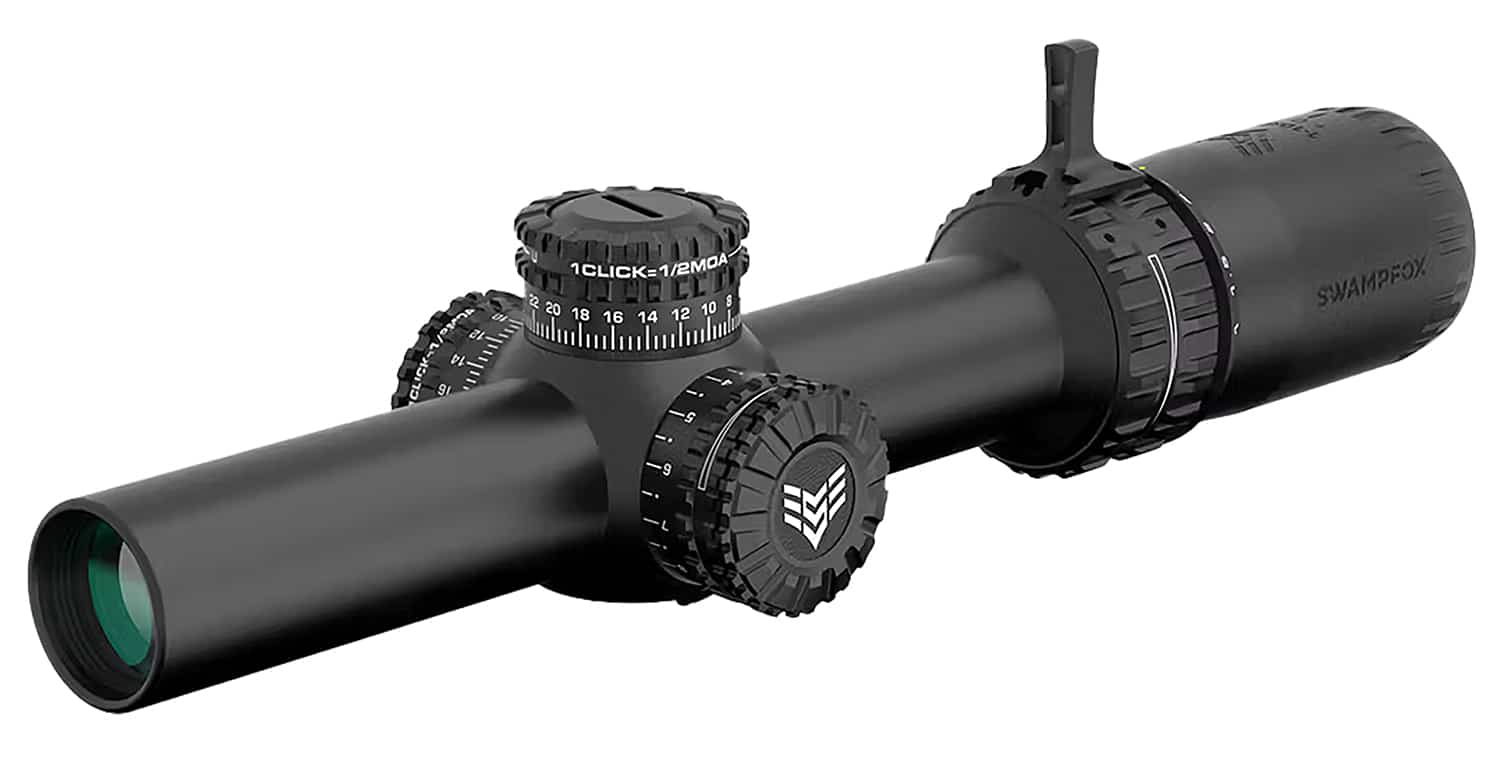

Swampfox Arrowhead LPVO 1-6×24 | 30mm | Guerrilla Dot MOA

The Swampfox Arrowhead is a low-power variable optic (LPVO) built for versatile carbine and precision-use roles. This model offers a 1-6x magnification range on a 30mm tube with a Guerrilla Dot MOA reticle in the second focal plane and battery-powered illumination. It includes push/pull locking turrets to reduce the chance of unintentional adjustment and multi-coated optics for a bright sight picture and improved resolution. Typical applications include close-quarters carbine work and mid-range precision shooting.

Product Specifications

• The magnification range is 1-6x to cover close and mid-range engagements.
• The tube diameter is 30mm for increased adjustment range and mounting stability.
• The objective lens measures 24mm to balance size and light transmission.
• The reticle is the Guerrilla Dot MOA in the second focal plane.
• The focal plane is Second to keep the reticle subtensions consistent at maximum magnification.
• Illumination is provided with dual LED emitters and 12 brightness settings.
• The scope uses a CR-2032 battery for reticle illumination.
• The turret click value is 1/2 MOA per click.
• Optical surfaces are fully multi-coated with anti-fog, anti-scratch and hydrophobic treatments.
• Parallax is adjustable and set to 100 yds.
• The overall length is 10.67″ for a compact profile on short-barrel rifles.
• Eye relief is listed as 3.39″-3.54″.
• The weight is 20.36 oz for a robust but carryable optic.
• The finish on the tube is Black.
• UPC is 889157001173.

The Arrowhead LPVO pairs practical features—push/pull locking turrets, an etched illuminated reticle, and durable, multi-coated glass—with a compact footprint. It is suited to shooters who want a bright, fast sight picture at low magnification and usable holdover capability at higher settings. The included throw lever, flip-up lens caps, and accessories make it ready for installation and use on a variety of platforms.

Owners commonly praise its bright sight picture and wide field of view, and many users note the turret locking system reduces accidental adjustments during use.
