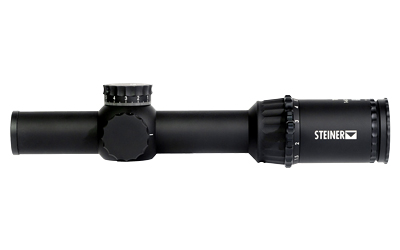

STEINER T6Xi 1-6x24mm FFP | KC-1 Reticle

The STEINER T6Xi 1-6x24mm is a first focal plane (FFP) low-power variable optic designed for rapid target acquisition at 1x and precise engagement at 6x. It features the KC-1 MIL reticle developed in collaboration with Kinetic Consulting, a throw lever for quick magnification changes, and user-selectable exposed or capped elevation turrets. A diopter locking ring helps maintain a consistent ocular focus once the reticle is set, and the design is built for durability and reliable performance in a range of field conditions.

Product Specifications

• The magnification range is 1-6x.
• The objective lens diameter is 24 mm.
• The reticle is KC-1 MIL.
• The focal plane is first focal plane (FFP).
• The tube diameter is 30 mm.
• The field of view is 114-19 ft at 100 yds.
• The eye relief is 3.9-3.4 in.
• The exit pupil is 10.3-4.5 mm.
• The overall length is 10.4 in.
• The weight is 20 oz.
• The wind/elevation click value is 1 cm (0.1 mrad).
• The elevation range at 100 m is 30 Mil.
• The illumination offers 4 night / 7 day levels.
• The optic is waterproof/fogproof and is rated submersible to 33 ft.
• The UPC is 000381851031.

The T6Xi blends a compact 1-6x zoom range with a robust feature set—throw lever, selectable turret styles, and a locking diopter—to serve shooters who need quick acquisition and dependable performance. Its illumination options and rugged sealing make it a practical choice for competition and utility optics where reliability and clear reticle reference are priorities.
