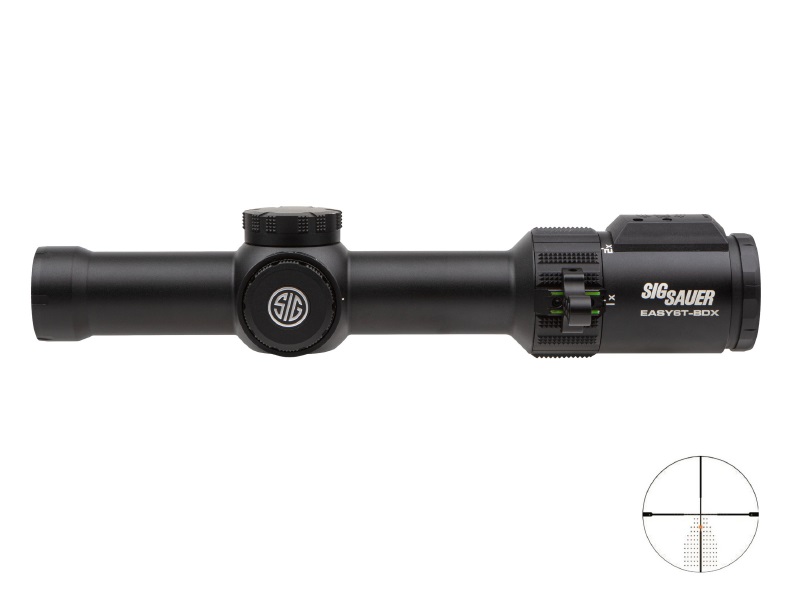

Sig Sauer Easy6-BDX 1-6×24 30mm | BDX-R2 | SOEBDX61101

The Sig Sauer Easy6-BDX is a 1-6×24 low-power variable optic built around a 30mm main tube and an illuminated BDX-R2 digital focal plane reticle. It integrates Sig Sauer’s BDX 2.0 Ballistic Data Xchange and an Onboard SmartBDC system with nine ballistic groups and a reticle composed of 194 individually addressable LEDs. The optic offers adjustable parallax, high light transmission, and substantial elevation and windage travel for close-to-mid-range shooting needs.

Product Specifications

• The magnification range is 1-6x for versatile close-to-mid-range engagement.
• The objective lens diameter is 24 mm to balance compact size and light gathering.
• The main tube measures 30 mm in diameter.
• The reticle is an illuminated BDX-R2 digital design with 194 individually addressable LEDs.
• The system includes BDX 2.0 and Onboard SmartBDC with 9 ballistic groups.
• The optic is specified to provide up to 95% light transmission.
• The total elevation travel is 37 MRAD for long vertical adjustment range.
• The total windage travel is 37 MRAD to allow wide lateral correction.
• Adjustment increments are 0.2 MRAD per click.
• The field of view is 34.60 – 105.80 ft @ 100 yds.
• The eye relief ranges from 3.7 in to 3.9 in.
• The weight is 18.90 oz.
• Parallax is adjustable to optimize focus at varied distances.
• The unit uses (2) CR2032 batteries for reticle illumination and electronics.
• The UPC is 798681629503.

The Easy6-BDX pairs modern digital ballistic tools with a compact LPVO form factor, making it suitable for accurate close-to-mid-range target shooting and competitive/tactical applications where rapid target acquisition and ballistic-informed holdovers are beneficial. Its illuminated digital reticle and onboard SmartBDC features help simplify holdover decisions while maintaining an optical sight picture familiar to shooters.
