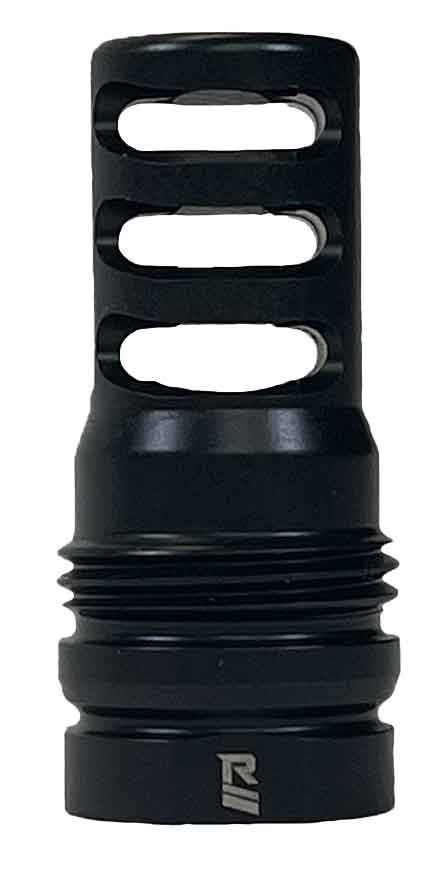

Rugged Suppressors MB025 3-Port Brake | .338 | 3/4×24

The Rugged Suppressors MB025 is a three-port muzzle brake engineered for .338 bore diameters (8.6mm) and built around Rugged’s Dual Taper Locking System. It threads on with a 3/4″-24 tpi pattern and is compatible with Rugged’s Alaskan360 and Alaskan360Ti suppressors when used with the R.U.M. (Rugged Universal Mount). Timing shims are included for proper alignment and installation. Intended uses include precision long-range shooting and big-bore field applications where recoil management and a secure mount interface are important.

Product Specifications

• The model is MB025 3 Port Brake.
• Designed for .338 caliber (8.6mm).
• The thread pattern is 3/4″-24 tpi.
• The NFA thread pattern is 3/4×24.
• The fit specification is 3/4X24.
• Includes the Dual Taper Locking System as an additional feature.
• Compatible with Alaskan360 and Alaskan360Ti suppressors when used with the R.U.M. mount.
• The applied finish is Black Nitride.
• The country of origin is US.
• The listed weight is 0.1 lb.
• The overall dimensions are 1.55 x 1.40 x 2.60 inches.
• This unit is not designed to be disassembled.
• Timing shims are included.
• UPC: 850044499168.

This brake provides a durable, serviceable mounting interface for large-bore applications while minimizing added profile and weight. Its Dual Taper Locking System and included timing shims make it appropriate for users who need a secure, repeatable connection to suppressors and mounts designed for 3/4″-24 threading. The MB025’s robust construction and nitride finish offer corrosion resistance and long-term serviceability in the field or on the range.
