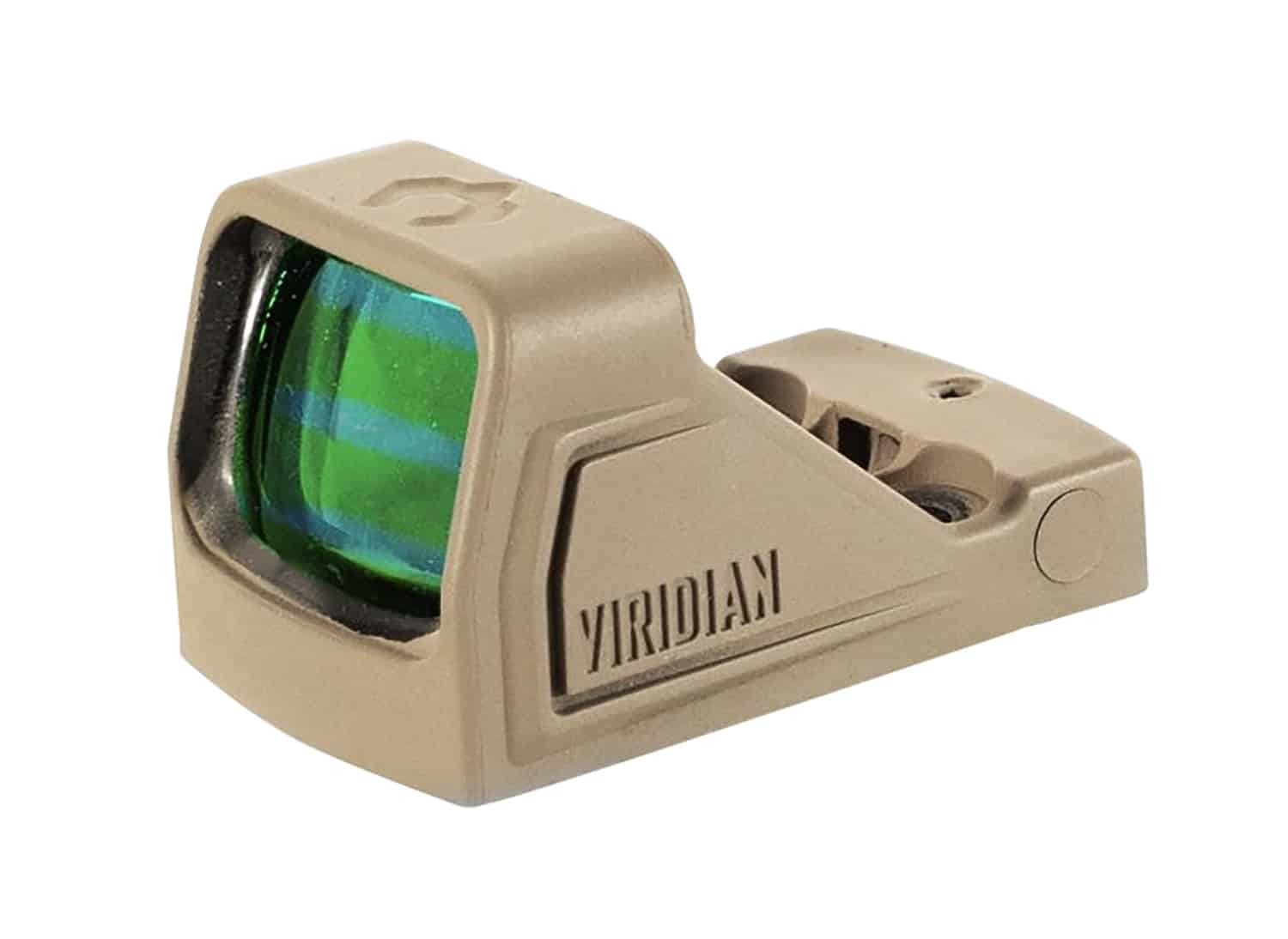

Viridian RFX11 1×16 Micro Green Dot | Shield Footprint | 9810142

The Viridian RFX11 is a compact 1×16 micro reflex sight that provides a 3 MOA green aiming dot and a Shield RMSc mounting footprint. It is intended for use on optics-cut concealed-carry pistols and as a close-range offset sight on rifles. The unit employs an ambient light sensor with instant-on and auto shutoff features and runs on a single CR2032 battery. Multiple source entries show inconsistent weight and dimension figures; see notes for details.

Product Specifications

• The magnification is 1x for true reflex, both-eyes-open shooting.
• The lens/objective measures 16mm x 22mm as provided by manufacturer data.
• The reticle is a 3 MOA green dot for precise close-range aiming.
• The mounting footprint is the Shield RMSc pattern for Shield-cut slides and compatible plates.
• The finish is listed as Flat Dark Earth (FDE).
• The power source is a CR2032 battery with a listed runtime of 30,000 hours on the middle setting.
• Brightness control is reported as automatic with 10 brightness settings.
• Operation includes Instant-On with an ambient light sensor and auto on/off with shake-to-wake.
• The lens is multi-coated to reduce glare and improve clarity.
• Eye relief is specified as unlimited for flexible mounting positions.
• The adjustment click value is 1 MOA per click.
• Maximum windage/elevation adjustment is listed as 90 MOA.
• The housing material is given as high-strength thermomolded polymer.
• The environmental rating is listed as IPX4 for splash resistance.
• The UPC for this item is 850060550317.

Small and feature-focused, the RFX11 provides a compact sighting solution for pistols and close-range rifle work where a low-profile, fast-acquisition sight is required. Its automatic brightness control and long-rated battery life reduce routine adjustments, and the Shield RMSc footprint keeps compatibility with many optics-cut slides and mounting plates.
