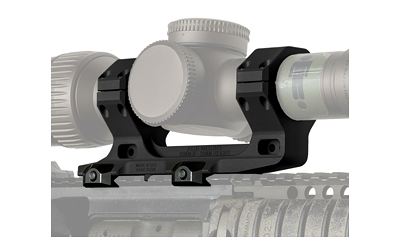

Reptilia AUS 34mm Optic Mount 1.54″ MFG# 100-153

Reptilia’s AUS one-piece mount secures 34mm-diameter magnified optics at a 1.54-inch bore height for use on standard M1913 Picatinny rails. It is machined from a single billet of 7075-T6 aluminum and finished with MIL-STD Type III Class 2 hard anodize. The mount uses an anti-snag spring-loaded nitrided steel clamp and a low-profile bolt system that can be tightened with a 5/32-inch hex or a flat blade driver. Typical applications include precision target work and hunting setups where consistent optic placement and objective clearance matter.

Product Specifications

• The manufacturer is Reptilia.
• The model is AUS.
• The tube diameter accepts 34mm optics.
• The bore height is 1.54 inches (39 mm).
• The material is machined from billet 7075-T6 aluminum.
• The finish is MIL-STD Type III Class 2 hardcoat anodize.
• The mount secures to M1913 Picatinny rails using an anti-snag spring-loaded nitrided steel clamp and bolt system.
• The clamp/bolt interface is tightened with a 5/32-inch hex or flat blade driver.
• The mount provides 0 MOA elevation.
• The mount will clear objectives up to 77mm on a flat-top Picatinny rail.
• The mount is made in the USA.
• The UPC is 850022282195.

Built for repeatable optic alignment and long-term durability, the AUS mount provides a low-profile, one-piece solution for mounting 34mm magnified optics. Its billet construction and positive clamp make it well suited to precision shooting and hunting setups that require consistent optic placement and clearance for larger objectives.
