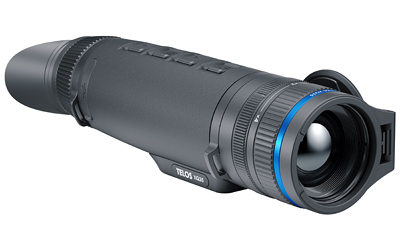

Pulsar Telos Thermal Monocular | 384×288 | PL77511

The Pulsar Telos thermal monocular is a compact, mountable handheld thermal imaging unit built around a 384×288 sensor with a 17‑micron pixel pitch and a 35 mm objective. It offers 3–12x magnification, a 1024×768 AMOLED display, and onboard photo/video recording with Wi‑Fi streaming capability. The unit is intended for professional observation tasks and extended field use where thermal contrast and portability matter.

Product Specifications

• The sensor resolution is 384×288, 17 Microns.
• The objective measures 35mm.
• The magnification range is 3-12x.
• The field of view is 10.70 x 8 Degrees @ 100 ft.
• The diopter adjustment range is -5/+4.
• The battery type is a Li-Ion Battery Pack.
• The unit weight is 25.40 oz.
• The display is a 1024 x 768 AMOLED.
• The video and photo resolution is 1024×768.
• The built-in memory is 64 GB.
• Wireless connectivity is Wi‑Fi (IEEE 802.11 b/g/n/ac) 2.4/5 GHz.
• The mount type is 1/4.
• The internal output voltage is 3.0-4.2 V.
• The external power compatibility is 5V / 9V (USB Type-C Power Delivery).
• The UPC is 810119016386.

This Telos unit is suited to extended field observation and professional applications where compact thermal imaging and recording are required—examples include wildlife observation and search & rescue surveying. Its combination of sensor resolution, onboard storage, and Wi‑Fi streaming supports documentation and immediate review in the field.
