PARD FT34-LRF 35mm 384×288 Thermal Clip-On | LRF

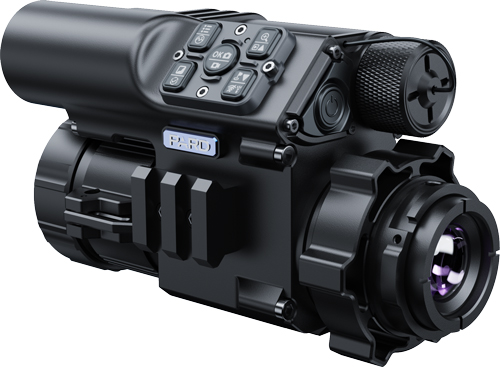

The PARD FT34-LRF is a modular thermal imaging unit designed for clip-on, handheld, or mountable use. It pairs a 35 mm objective with a 384×288 thermal sensor to provide thermal imaging for observation and range estimation. The unit includes an integrated laser rangefinder and supports wireless connectivity through the PardVision app.

Product Specifications

• The sensor type is Uncooled VOx (vanadium oxide) with a resolution of 384×288 pixels.
• The objective lens measures 35 mm.
• The optical magnification is 3.5x with digital zoom options of 2x, 4x, 6x, and 8x.
• The thermal frame rate is 50 Hz.
• The specified NETD (thermal sensitivity) is 25 mK (0.025°C).
• The display is an OLED with a resolution of 1440×1080 pixels.
• The onboard laser rangefinder detection range is listed as 1,097 m / 1200 yd.
• Photo size is 2592×1944 pixels and video is 1024×768 pixels.
• Storage supports a TF (microSD) card up to 128 GB.
• Power is provided by a 18650 Li‑ion battery and external power is supported via USB Type‑C.
• The housing is aluminum alloy and the unit is rated IP67 for ingress protection.
• The unit supports wireless connectivity and the PardVision app via Wi‑Fi.
• Built-in features include a ballistic calculator, multiple reticle styles and colors, PIP, and loop/self-motivated recording.
• Recoil resistance is specified as 6000 J.
• UPC is 850042449943.

The FT34-LRF is intended for users who need a versatile thermal solution for observation and range measurement. Common applications include low-light hunting and long-range observation or target assessment where quick range data and thermal imaging help with situational awareness. Its clip-on form factor also allows it to be used as a handheld monocular or mounted on compatible optics.

Designed for operators who prioritize modularity and data integration, the FT34-LRF combines a high-resolution thermal sensor, an integrated laser rangefinder, and wireless connectivity in a weather-resistant aluminum housing. The onboard ballistic calculator and multiple reticle options make it suitable for field use where thermal imaging and range data are required. The PardVision app compatibility enables image transfer and additional configuration from supported devices.
