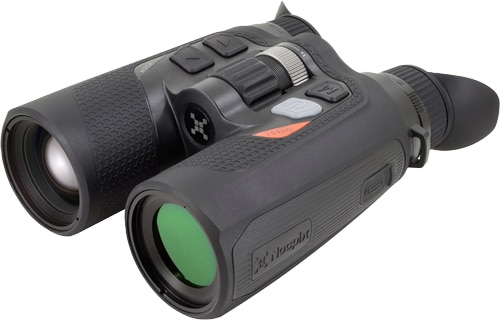

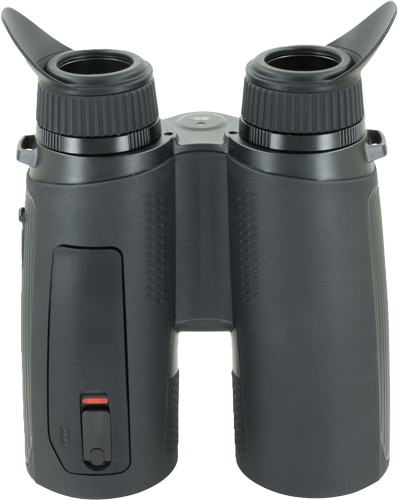

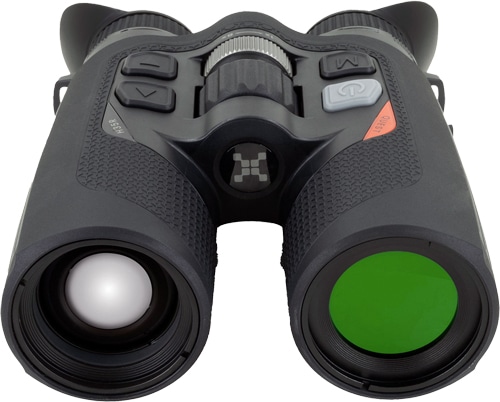

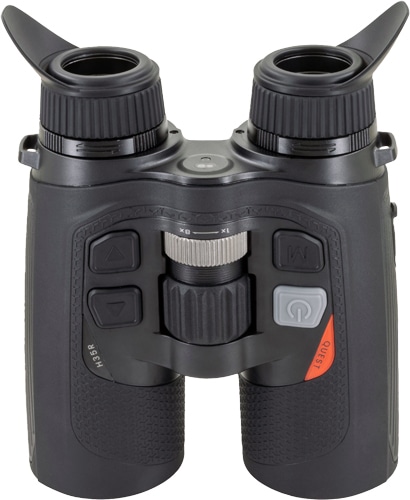

The NOCPIX QUEST H35R is a binocular-format thermal imager with a 640×512 sensor, dual 1920×1200 AMOLED eyepiece displays, a 35mm objective, an integrated 1000 m laser rangefinder, onboard 64 GB storage and IP67 protection.
The NOCPIX QUEST H35R is a binocular-format thermal imaging device designed for two-eye viewing and extended observation. It pairs a high-resolution 640×512 thermal sensor with dual 1920×1200 AMOLED displays—one for each eyepiece—for a viewing experience closer to traditional binoculars. The unit includes a built-in laser rangefinder and onboard recording capabilities to document observations in the field.
Its design emphasizes situational awareness and image clarity for tasks that require sustained observation and distance measurement.
Product Specifications
The model is listed as NOCPIX QUEST H35R.
The thermal sensor resolution is 640×512.
The objective lens measures 35mm.
The eyepiece displays are dual 1920×1200 AMOLED panels.
The refresh rate/frame rate is 60 Hz.
The built-in laser rangefinder measures distances up to 1000 meters.
Onboard storage capacity is 64 GB.
The unit supports video and image recording and uses a USB-C interface.
The diopter adjustment range is +4 / -5 for each eyepiece.
Housing color and finish are listed as Black with a full-rubber coating.
The housing rating is IP67 for dust and water resistance.
Thermal sensitivity (NETD) is listed as ≤15 mK.
The listed weight with battery is 24.69 oz.
The package includes selectable palettes such as white hot, black hot, red hot, color, crimson, viridian, and violet.
UPC: 850048751538
The QUEST H35R’s binocular layout and dual high-resolution displays make it well suited for extended observation tasks where both-eyes operation reduces fatigue and improves target discrimination. Common applications include wildlife observation and long-distance perimeter or land-management monitoring, where a reliable LRF and image recording add value.
Built around a 640×512 thermal core and robust IP67-rated housing, the QUEST provides a capable platform for professional-grade observation and documentation in low-light and no-light conditions. Its combination of dual eyepiece displays, onboard storage, and a 1000 m rangefinder makes it a practical choice for users who need sustained, two-eye thermal scanning and range measurement in the field.
