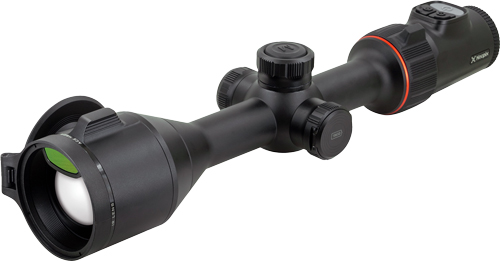

Nocpix ACE H50R Thermal Sight | 50mm | 640

The Nocpix ACE H50R is a thermal weapon sight designed to blend advanced thermal imaging features with intuitive, day-optic style ergonomics. It pairs a 640-resolution sensor with a 50 mm germanium objective and an internal display system to deliver detailed thermal imagery for field observation. The unit supports a removable rechargeable battery and includes an integrated laser rangefinder for range measurement and ballistic calculation.

Typical applications include precision long-range observation and wildlife or land-management monitoring where thermal detection and range data provide operational value.

Product Specifications

• The model is listed as ACE.
• The product type is Thermal Optic.
• The sensor resolution is specified as 640.
• The eyepiece display resolution is described as 2560×2560 AMOLED.
• The objective lens measures 50mm in diameter.
• The battery is a removable 18650 Li‑ion rechargeable cell.
• The listed battery life is approximately 11 hours.
• The unit weight is stated as 39.50 oz.
• The product dimensions are 5.25 X 5.75 X 17.85.
• The operating temperature range is given as -25/40.
• The stated range of focus is 1750.
• The diopter adjustment range is +4/-5.
• The reticle type is listed as Multiple.
• Mount compatibility is 30mm standard rings/mounts.
• The unit includes a lens-integrated laser rangefinder with a stated capability of up to 1300 yards.
• The UPC is 850048751415.

The ACE packs advanced imaging and rangefinding into a form factor intended to feel familiar to day-optic users. Its removable rechargeable battery and internal charging options are built to support extended operations, while the integrated laser rangefinder and onboard ballistic calculation expand the unit’s practical utility for observation and long-range measurement tasks.
