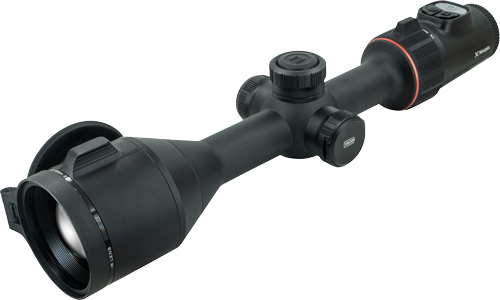

NOCPIX ACE H50 | 50mm | 640×512 Thermal Sight

The NOCPIX ACE H50 is a compact thermal optic built around a 50 mm objective and a 640×512 thermal sensor, packaged to resemble a traditional day optic. It integrates an AMOLED eyepiece display and an ocular magnifier to deliver a usable, high‑detail image for extended observation. Power is handled via an internal USB‑C charging system plus a removable rechargeable cell to enable hot‑swapping in the field. Applications include long‑range observation and precision shooting support where thermal imaging and onboard recording are required.

Product Specifications

• The manufacturer and model are NOCPIX ACE H50.
• The thermal sensor resolution is 640×512.
• The eyepiece display resolution is 2560×2560.
• The objective lens measures 50 mm.
• The ocular magnifier provides 1–3× optical magnification of the internal display.
• The thermal sensor operates at a 60 Hz frame rate.
• The sensor NETD specification is 15 mK.
• The stated detection range (target 1.7×0.5 m, P=99%) is 2600 m.
• Onboard recording and playback are supported for photo, video and audio.
• The listed internal storage capacity is 64 GB.
• Wi‑Fi and mobile app connectivity are listed as Yes.
• Power options include an internal USB‑C charging battery and a removable 18650‑style rechargeable cell for hot‑swap capability.
• The unit weight is listed as 38.5 oz (1090 g) with battery.
• Overall dimensions are listed as 5.25 × 5.55 × 17.50 inches.
• Operating temperature range is -25 to 40 °C.
• UPC: 850048751491

The ACE H50 combines a high‑resolution sensor and high‑definition eyepiece with on‑board recording and hot‑swappable power options to support extended field use. Its form factor and 30 mm mount compatibility make it suitable for users who prefer a day‑optic style interface while requiring thermal imaging capability and data capture for documentation or analysis.
