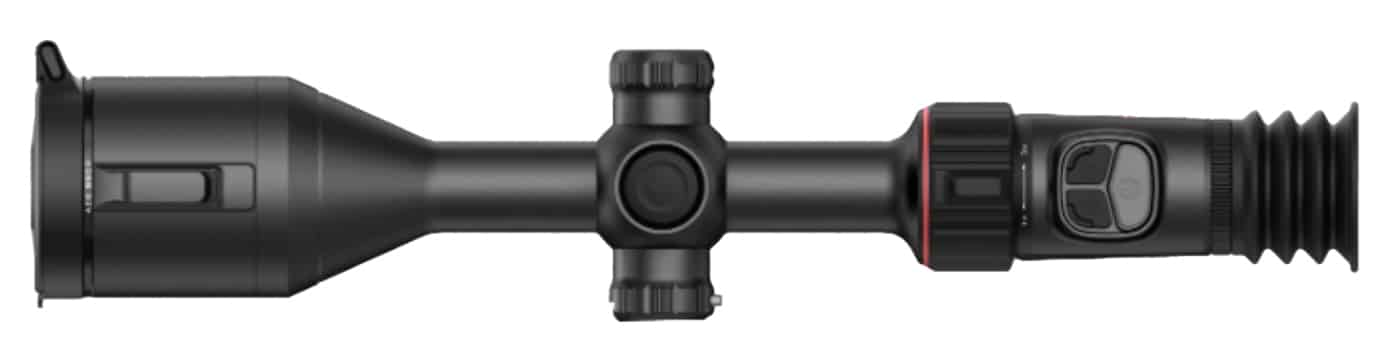

NOCPIX ACE S60R thermal weapon sight with a 60 mm objective and 1280×1024 sensor. Features an integrated laser rangefinder, removable 18650 battery with USB‑C charging, 1–3× ocular zoom, and compatibility with standard 30 mm mounts.
The NOCPIX ACE S60R is a thermal weapon sight designed to provide high-resolution thermal imaging and integrated ranging for field observation and precision target identification. It mounts to standard 30 mm rings and supports both bolt-action and semi-automatic rifles. The ACE pairs a 1280×1024 thermal sensor with a high-resolution AMOLED eyepiece and offers hot‑swappable battery capability through a removable 18650 cell plus internal USB‑C charging.
Product Specifications
The thermal sensor resolution is 1280×1024.
The objective lens measures 60 mm.
The sensor NETD (sensitivity) is 15 mK.
The refresh rate/frame rate is 50 Hz.
The eyepiece uses a 1.03‑inch 2560×2560 AMOLED display.
The ocular zoom range is 1–3×.
The sight is compatible with standard 30 mm mounts and rings.
Power sources include a built‑in USB‑C rechargeable battery and a removable 18650 battery.
The removable battery is a 18650 Li‑ion cell and the unit also lists an internal 4000 mAh battery component.
The unit provides photo, video, and audio recording capability.
The ACE includes ballistic calculation functionality.
The sight supports Wi‑Fi and mobile app connectivity.
The unit includes an integrated laser rangefinder located in the objective lens assembly.
The internal memory capacity is 64 GB.
The UPC is 850048751385.
The ACE S60R combines a high-resolution sensor and display with practical power options and integrated ranging to support extended observation and precise ranged measurement in the field. Its feature set is aimed at users who need detailed thermal imagery, data recording, and app connectivity in a compact optical package.
