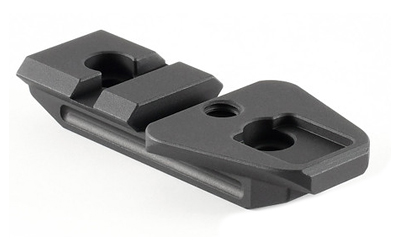

IRAY USA RICO Micro PICTAIL Shoe | Picatinny + Dovetail

The IRAY USA RICO Micro PICTAIL shoe combines a standard dovetail helmet shoe with a MIL-STD-1913 picatinny rail to provide a compact, versatile mounting solution for both helmet night-vision interfaces and weapon optics. Constructed from 6061 aluminum alloy with an anodized black finish, the PICTAIL is designed for lightweight durability and cross-platform compatibility. Its design produces adjustable rear offset when used with the ADM MQD mount, making it useful on short weapon platforms while retaining full dovetail helmet functionality.

Applications include helmet-mounted night-vision systems and low-offset weapon mounting on short-barrel rifles and pistols where reduced footprint is required.

Product Specifications

• The product type is Mount.
• The finish is Anodized.
• The color is Black.
• The material is 6061 aluminum alloy.
• The dimensions are 2.50 x 3.50 x 4.90 inches.
• The height is 2.5000 inches.
• The width is 3.5000 inches.
• The length is 4.9000 inches.
• It is designed to fit helmets.
• The mount combines a dovetail shoe and a MIL-STD-1913 picatinny rail.
• It interfaces with ADM MQD mounts to allow adjustable optic offsets.
• Compatible with standard dovetail receptacles such as Wilcox KVC.
• The weight is 0.175 pounds.
• The UPC is 850029093596.

The RICO Micro PICTAIL shoe is a practical solution when you need one mounting system to serve both helmet and weapon roles. Its hybrid dovetail/picatinny form factor and ADM MQD compatibility let you tune rear offset and footprint for shorter weapon platforms without giving up helmet dovetail compatibility. If you value a lightweight, mechanically simple interface that bridges personal protective systems and weapon optics, the PICTAIL provides a focused, technically straightforward option.
