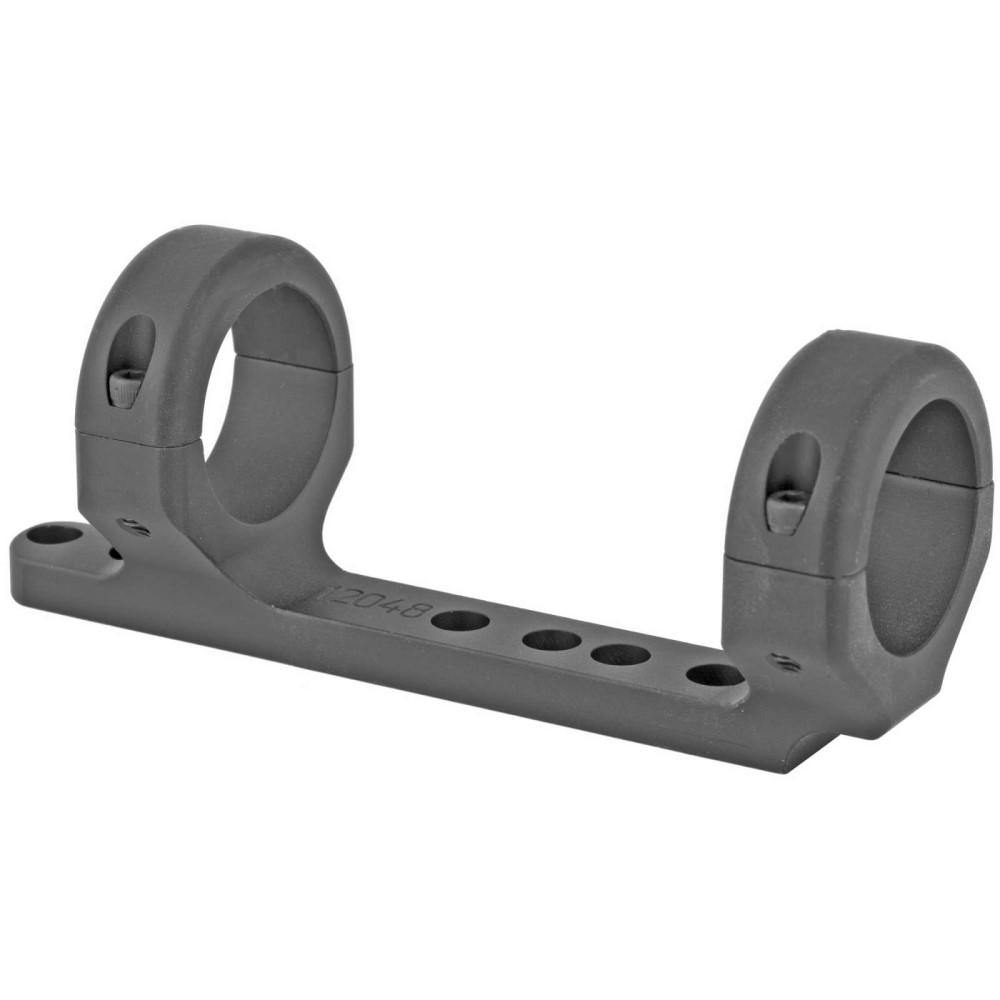

DNZ Products Game Reaper Marlin Scope Mount 30mm High Black
Marlin 1894 1895 336 XLR: Will also fit Henry Rifles that are completely flat on top of receiver and are drilled and tapped.
Mount fits both left and right hand firearms.
Base screws are 8-40 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Base screws use a 9/64″ Allen wrench and ring screws use a 7/64″ Allen wrench.
Outside to outside of rings is 4.08″. Standard rings are .63″ wide and have 2 screws per ring. 6 Hole to hole spacing dimensions are .50″ 1.88″ .50″ .37″ .50″. Mount has 6 holes thru it so it can be used on the long and short receiver. 2 holes will not be used. Depends on the gun to what 4 will be used. Height of mount from top of receiver to centerline of scope tube is – medium 1.06″ high 1.19″.
