Trijicon Cantilever 30mm | 20 MOA | 1.535″ H | AC22047

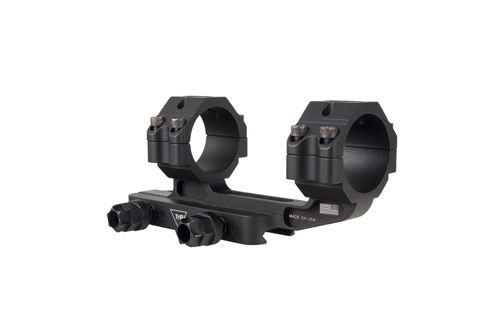

The Trijicon Cantilever Mount with Q-LOC™ Technology is a low-profile 30mm tube mount engineered to keep optics close to the rail for stable, repeatable alignment. It uses a Mil-Spec drop-test rated 6061-T6 aluminum housing and a spring-loaded, one-handed tool-less Q-LOC quick-release system that provides automatic retention and return-to-zero performance. The mount includes a 20 MOA cant and a distance from rail to optical axis of 1.535″ to support elevated trajectory adjustments and compatibility with clip-on devices.

Recommended applications include long-range precision rifle use and hunting setups that require a reduced optical axis and quick-detach capability. The mount is compatible with variable-power optics that have a 30mm tube and objective lenses up to 56mm, and it installs on any Mil-Spec or NATO Picatinny rail.

Product Specifications

• The tube size is 30mm.
• The mount height above the rail is 1.535″ (38.99 mm).
• The cant is 20 MOA.
• The housing material is 6061-T6 aluminum.
• The finish is matte black.
• The overall length is 6.1 inches (154.94 mm).
• The overall width is 2.8 inches (71.12 mm).
• The mount features Trijicon Q-LOC™ Technology for quick, tool-less attachment and automatic retention.
• The design fits objective lenses up to 56 mm.
• The spring-tension-only torque spec for the rail is 12–16 in·lbs.
• The rail can be tightened to 30–38 in·lbs if desired.
• The ring-cap torque spec is 14–16 in·lbs.
• This product is made in the USA.
• The UPC is 719307618770.

Durable and low-profile, this Trijicon Cantilever Mount is purpose-built for shooters who need a secure, repeatable mounting solution for variable-power optics on Picatinny rails. The Q-LOC quick-release system simplifies removal and reattachment while the 20 MOA cant and 1.535″ optical axis height make it a strong choice for precision and hunting setups where elevation and clip-on device compatibility matter.
