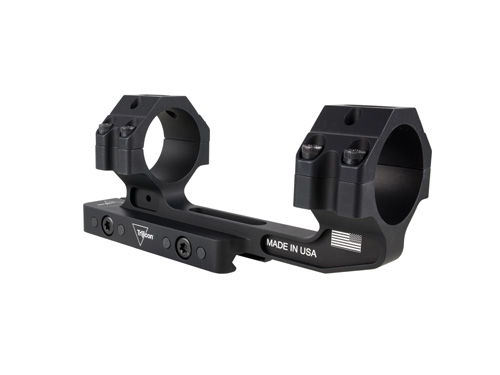

Trijicon AC22052 Cantilever Mount | 34mm | 1.535in H

The Trijicon Cantilever Mount AC22052 is a 34mm-tube scope mount engineered to keep variable-power optics low on a Mil‑Spec Picatinny rail. It is machined from Mil‑Spec drop test rated 6061-T6 aluminum and finished in matte black for a low-profile appearance. The mount provides a 1.535″ height from the top of the mounting rail to the optical axis and is compatible with optics that have an objective up to 56mm. Common applications include hunting and long-range precision rifle use.

Product Specifications

• The tube measures 34 mm.
• The housing material is 6061-T6 aluminum.
• The finish is matte black.
• The overall length is 6.1 inches (154.94 mm).
• The width is 1.95 inches (49.53 mm).
• The height above rail is 1.535 inches (38.99 mm).
• The mount fits objective lenses up to 56 mm.
• The torque specification for the rail is 30-38 in. / lbs.
• The torque specification for the ring caps is 14-16 in. / lbs.
• This mount is compatible with Mil-Spec or NATO Picatinny rail platforms.
• The design offers superior return-to-zero performance.
• This product is made in the USA.
• The rings included are Yes.
• The package contains 1 piece.
• The UPC is 719307618824.

With its cantilever geometry and precise torque specs, the AC22052 provides a stable mounting solution for variable-power optics while keeping the optic low for a consistent sight picture. The flush mounting bolt configuration and low weight support a clean profile on any full-length Picatinny rail and also match the standard height above rail for common clip-on devices.
