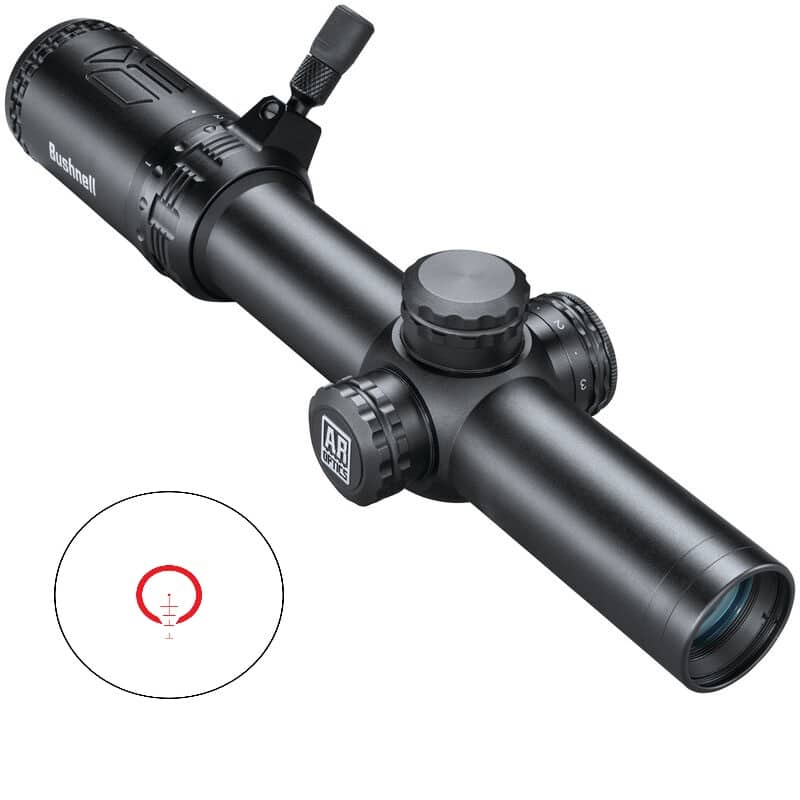

Bushnell AR Optics 1-8x24mm | 30mm Tube | Illuminated

The Bushnell AR Optics 1-8x24mm riflescope is a compact, AR-oriented optic built on a 30mm main tube with a second focal plane illuminated BTR-1 reticle for rapid aiming. It provides a 1–8x magnification range and two throw-down power change levers to speed transitions between magnification settings. The scope includes capped turrets and IPX7 waterproofing for durability, and illumination is powered by a CR2032 battery.

Typical applications include short-to-mid-range AR competition (practical/3-gun) and fast target acquisition on dynamic ranges or daylight/low-light field use.

Product Specifications

• The weight is 19.10 oz.
• The eye relief is 3.70″.
• The field of view is 16 – 100 ft @ 100 yds.
• The overall length is 10.20″.
• The magnification range is 1-8x.
• The objective lens diameter is 24mm.
• The optic coating is Fully Multi-Coated.
• The parallax adjustment is a Side focus style.
• The scope is rated for Fog/Waterproof use (IPX7 noted in product text).
• The reticle is an Illuminated BTR-1 in the second focal plane.
• The tube diameter is 30mm.
• The illumination uses a CR-2032 battery.
• The focal plane is Second.
• The click value is 1/10 MIL while an alternate adjustment spec is listed as 1/4 MOA in the data set.
• The product UPC is 029757003126.

This scope is aimed at shooters who need a fast, versatile optic on an AR platform: it balances a broad close-quarters to mid-range magnification spread with an illuminated BTR-1 reticle for quick engagement. The combination of throw-down power levers, capped turrets and weather-resistant construction makes it a practical choice for competitive and range environments where rapid target acquisition and durable optics are priorities.
