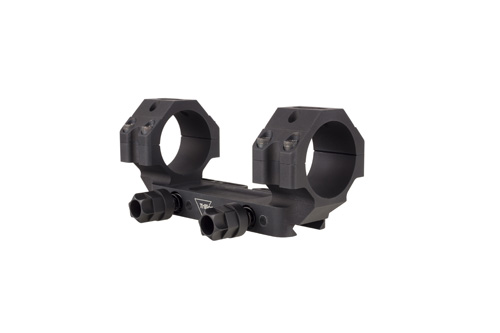

Trijicon AC22048 | Bolt Action Q-LOC Mount | 34mm, 20 MOA

The Trijicon AC22048 Bolt Action Mount with Q-LOC technology is a 34mm cantilever scope mount designed for bolt-action rifles. It features a one-handed, tool-less Q-LOC quick-release system with a spring-loaded retention mechanism intended to preserve zero and simplify mounting. Constructed from Mil-Spec drop-test rated 6061-T6 aluminum with a matte black anodized finish, the mount is engineered for low profile and durable field use.

Common applications include hunting and long-range precision rifle use, where a low optic height and robust return-to-zero performance are priorities.

Product Specifications

• The manufacturer is Trijicon.
• The manufacturer part number is AC22048.
• The UPC is 719307618787.
• The tube size is 34mm.
• The housing material is 6061-T6 aluminum.
• The finish is matte black anodized.
• The overall length is 4.74 in (120.4 mm).
• The overall width is 2.8 in (71.12 mm).
• The mount is a cantilever design.
• The mount features Trijicon Q-LOC™ Technology for quick-release, return-to-zero mounting.
• The cant is 20 MOA to allow additional elevation adjustment.
• It fits objective lenses up to 44mm.
• The rail spring-tension torque spec is 12–16 in. / lbs..
• The rail can be tightened to a maximum torque of 30–38 in. / lbs..
• The ring cap torque spec is 14–16 in. / lbs..

This mount combines low weight, a low profile, and a snag-resistant knob design to streamline optic installation and removal while maintaining precise alignment. Its Q-LOC system and proven construction make it suitable for users seeking a reliable, easy-to-use mounting solution on bolt-action platforms.
