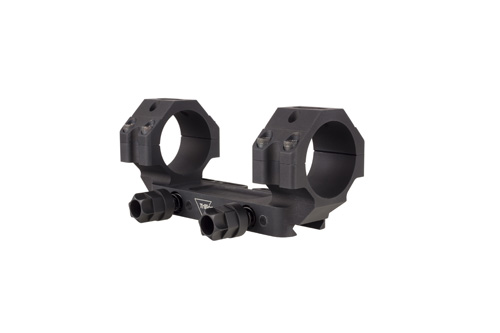

Trijicon AC22049 | Bolt Action Mount | 30MM | 1.125 in

The Trijicon Bolt Action Mount with Q-LOC™ Technology is a cantilever-style scope mount engineered to keep the optic low while providing a canted 20 MOA base for extended elevation adjustment. It is constructed from Mil‑Spec drop-test rated 6061‑T6 aluminum with a matte black anodized finish and a spring-loaded, one-handed tool-less quick‑release system for consistent retention and repeatable return to zero. The mount is compatible with Mil‑Spec/NATO Picatinny rails and is intended for use with variable‑power optics featuring objective lenses up to 44mm. Application examples: hunting with variable optics and precision long‑range shooting.

Product Specifications

• The manufacturer part number is AC22049.
• The UPC is 719307618794.
• The housing material is 6061‑T6 aluminum.
• The finish is matte black anodized.
• The length is 4.74 inches.
• The width is 2.8 inches.
• The height from the top of the mounting rail to the optical axis is 1.125 inches (28.58 mm).
• The mount features Trijicon Q‑LOC™ quick‑release technology for tool‑less attachment and return to zero.
• The base is canted at 20 MOA to increase available elevation travel.
• The mount fits objective lenses up to 44mm.
• The spring tension specification for the rail is 12–16 in·lbs, and it can be tightened to 30–38 in·lbs.
• The torque specification for the ring caps is 14–16 in·lbs.
• The design includes a snag‑resistant knob and automatic retention to help maintain zero if the knobs are not tightened.
• The mount is compatible with any Mil‑Spec/NATO Picatinny rail.
• The mount is a cantilever style intended to position the optic forward for improved eye relief and clearance.

Compact and engineered for repeatable performance, this Trijicon Q‑LOC mount is aimed at shooters who value a low optical axis, reliable quick‑release performance, and a canted base for additional elevation. Its lightweight aluminum construction and precision machining make it a practical choice for field use and precision rifle setups where consistent return to zero and reduced bulk matter.
