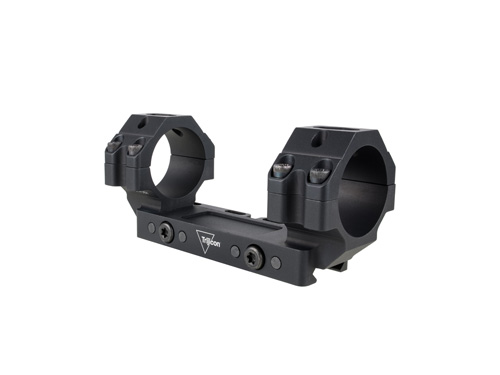

Trijicon Bolt Action Mount | 34mm | 1.125″ H | 20 MOA

The Trijicon Bolt Action Mount is a low-profile scope mount designed to position variable-power optics as close to the bore axis as practical for hunting and long-range precision rifle work. It uses a 34mm tube and provides a 20 MOA cant to assist with extended-range zeroing. Constructed from Mil-Spec drop-test rated 6061-T6 aluminum with a matte black anodized finish, the mount is compatible with Picatinny rails.

Product Specifications

• The tube measures 34mm for optics with larger center tubes.
• The housing is made from 6061-T6 aluminum with Mil-Spec drop-test rating.
• The finish is matte black anodized for a low-reflective surface.
• The overall length is 4.74 in (120.4 mm).
• The overall width is 1.95 in (49.53 mm).
• The distance from the top of the mounting rail to the optical axis is 1.125 in (28.58 mm).
• The mount fits objective lenses up to 44 mm.
• The mount provides a 20 MOA cant to assist with long-range trajectory correction.
• The rail torque specification is 30–38 in./lbs.
• The ring cap torque specification is 14–16 in./lbs.
• The design uses a flush mounting bolt configuration for a low side profile.
• The mount is compatible with any Mil-Spec or NATO Picatinny rail.
• The product is made in the USA.
• The length and profile support mounting of variable power optics with up to 44 mm objective lenses.
• The UPC is 719307618909.

Built to keep optics low and maintain reliable return-to-zero, this mount is suited for scoped bolt-action rifles used in hunting and precision target work where a stable, lightweight mounting solution matters. Its combination of a 34mm tube, moderate height, and 20 MOA cant make it useful for shooters who need additional elevation for extended-range engagements while keeping a compact optic profile.
