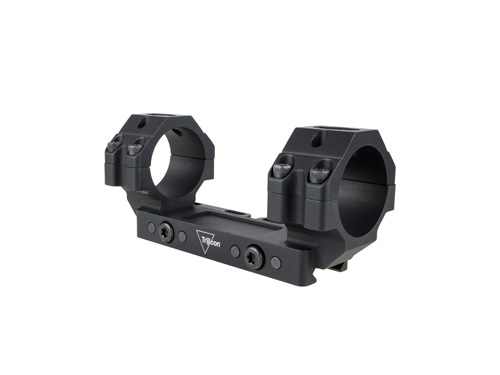

Trijicon | Bolt Action Mount | 30mm | 1.125″ Height

The Trijicon Bolt Action Mount is a low-profile 30mm mounting solution engineered for variable-power optics. It positions the optical axis at 1.125″ above the rail and provides a factory 20 MOA cant for extended-range zeroing. Constructed to Mil-Spec standards, the mount is intended for hunting and long-range precision rifle applications where a lightweight, return-to-zero mount is required.

Product Specifications

• The tube size is 30mm.
• The housing material is 6061-T6 aluminum.
• The finish is matte black anodized.
• The length measures 4.74 in (120.4 mm).
• The width measures 1.95 in (49.53 mm).
• The height from top of mounting rail to optical axis is 1.125″ (28.58 mm).
• The mount fits objective lenses up to 44mm.
• The cant built into the mount is 20 MOA.
• The rail torque specification can be tightened to 30–38 in-lbs.
• The ring cap torque specification is 14–16 in-lbs.
• The mount is compatible with Mil-Spec / NATO Picatinny rails.
• The design is rated for Mil-Spec drop tests.
• The mount is manufactured in the USA.
• The mount features a slimline profile and a flush mounting bolt configuration.
• The UPC is 719307618916.

This mount is built for shooters who prioritize low optical height, secure return-to-zero, and reduced weight. Its slim profile and Mil-Spec construction make it well suited to pairing with variable-power optics on bolt-action platforms for hunting or long-range precision work. The integrated 20 MOA cant helps maximize elevation adjustment for extended-range setups while maintaining a clean sightline.
