Trijicon AC22058 | Bolt Action Mount | 30mm

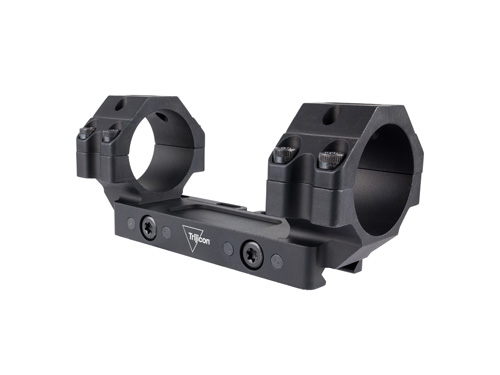

The Trijicon Bolt Action Mount (AC22058) is a low-profile ring and mount combo engineered for 30mm tubes and a 1.06″ height from Picatinny rail to optical axis. Constructed from Mil-Spec drop test rated 6061-T6 aluminum with a matte black anodized finish, it is compatible with any Mil-Spec or NATO Picatinny rail. The mount supports objective lenses up to 42mm and is designed for consistent return-to-zero performance on bolt-action platforms. It is made in the USA and optimized for lightweight, low-profile optic installations.

Common applications include precision rifle shooting and hunting where a low optical axis and repeatable zero are priorities.

Product Specifications

• The model is Bolt Action.
• The tube size is 30mm.
• The housing material is 6061-T6 Aluminum.
• The finish is Matte black anodized.
• The overall length is 4.74 in (120.4mm).
• The overall width is 1.95 in (49.53mm).
• The height from top of rail to optical axis is 1.06″ (26.92mm).
• The mount fits objective lenses up to 42mm.
• The rail torque spec for spring tension is 12-16 in. / lbs.
• The rail can be tightened to 30-38 in. / lbs.
• The ring cap torque spec is 14-16 in. / lbs.
• The mount is made in the USA.
• The product includes rings and ships as 1 piece.
• The color is Black.
• The UPC is 719307618886.

This Trijicon AC22058 mount provides a slim, durable platform for mounting 30mm variable optics where a low optical axis and repeatable performance matter. Its Mil-Spec aluminum construction and tested torque specifications make it suitable for shooters who value reliable return-to-zero and minimal weight. The slimline profile and compatibility with standard Picatinny rails make this mount a straightforward choice for precision shooters and hunters seeking a clean, low-mounted optic setup.
