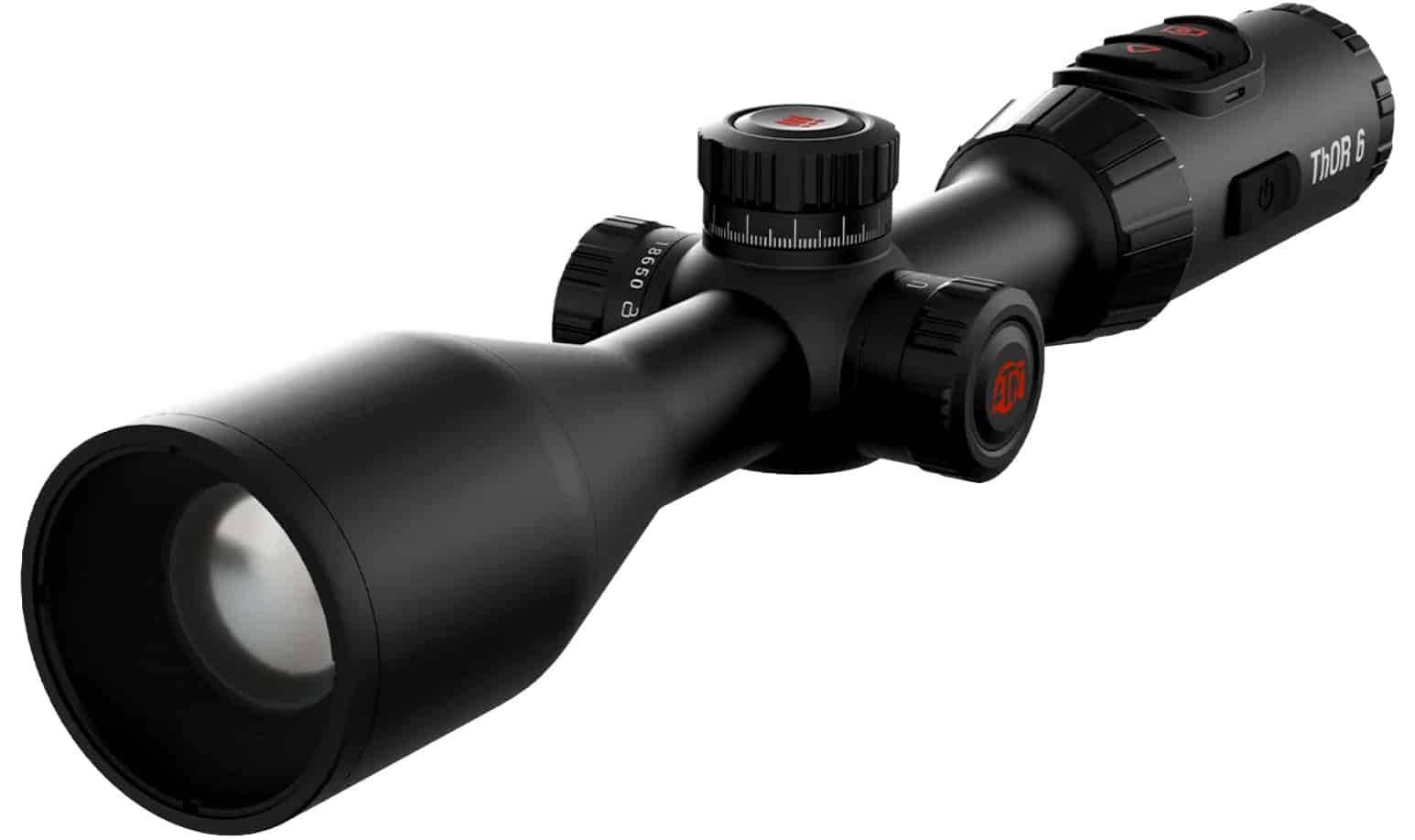

ATN ThOR 6 Elite | Thermal Scope 2-16x | 640×512 | TIWST6635A

The ATN ThOR 6 Elite is a thermal riflescope built around a high-sensitivity 640×512 sensor and a 35 mm F/1.0 germanium lens to provide clear thermal imaging in low-visibility conditions. Its 2–16× optical range, 50 Hz refresh rate and SharpIR image processing are intended to deliver steady, detailed imagery for extended observation. The unit offers onboard recording, Wi‑Fi hotspot connectivity and an internal 64 GB gallery for captured media.

Common applications include long-range wildlife observation and perimeter or facility monitoring where thermal detection and recording are required. The ThOR 6 Elite is configured to support extended field use with a dual power approach and rugged, weather-resistant construction.

Product Specifications

• The magnification range is 2–16× for flexible observation at varied distances.
• The sensor resolution is 640×512 with a 12 µm pixel pitch.
• The thermal sensitivity is rated at ≤15 mK NETD for enhanced detection of low-contrast heat signatures.
• The detector is a 12 µm VOx uncooled focal plane array.
• The refresh rate is 50 Hz for smooth real-time imaging.
• The lens system is a 35 mm, F/1.0 (germanium) objective.
• The field of view measures 12.52° × 9.41° (H × V).
• The display is a 0.49″ OLED, 1920×1080 panel for high-resolution viewing.
• The digital zoom options are 1×, 2×, 4×, 8× with both step and smooth zoom modes.
• The power system uses internal + replaceable 18650 Li‑ion batteries and supports USB‑C external power (5 VDC / 2A).
• The typical battery life is ~9 hours under normal operating conditions.
• The unit includes 64 GB internal storage with video and audio recording plus Recoil Activated Video (RAV).
• Connectivity features include a built‑in Wi‑Fi hotspot and compatibility with the ATN Connect mobile app for iOS and Android.
• The body is constructed from magnesium alloy, carries an IP67 ingress rating, and mounts with 30 mm rings (not included).
• The UPC is 658175934561.

Thoughtfully engineered for extended observation and data capture, the ThOR 6 Elite combines a sensitive thermal sensor, a high-transmission lens, and an ergonomic control layout to help users gather clear imagery and recorded evidence in adverse lighting and weather. Its onboard features — including multiple color palettes, PIP (Picture-in-Picture), zeroing freeze and Hot Point Tracking — make it a capable tool for methodical field work and long-duration monitoring tasks.
