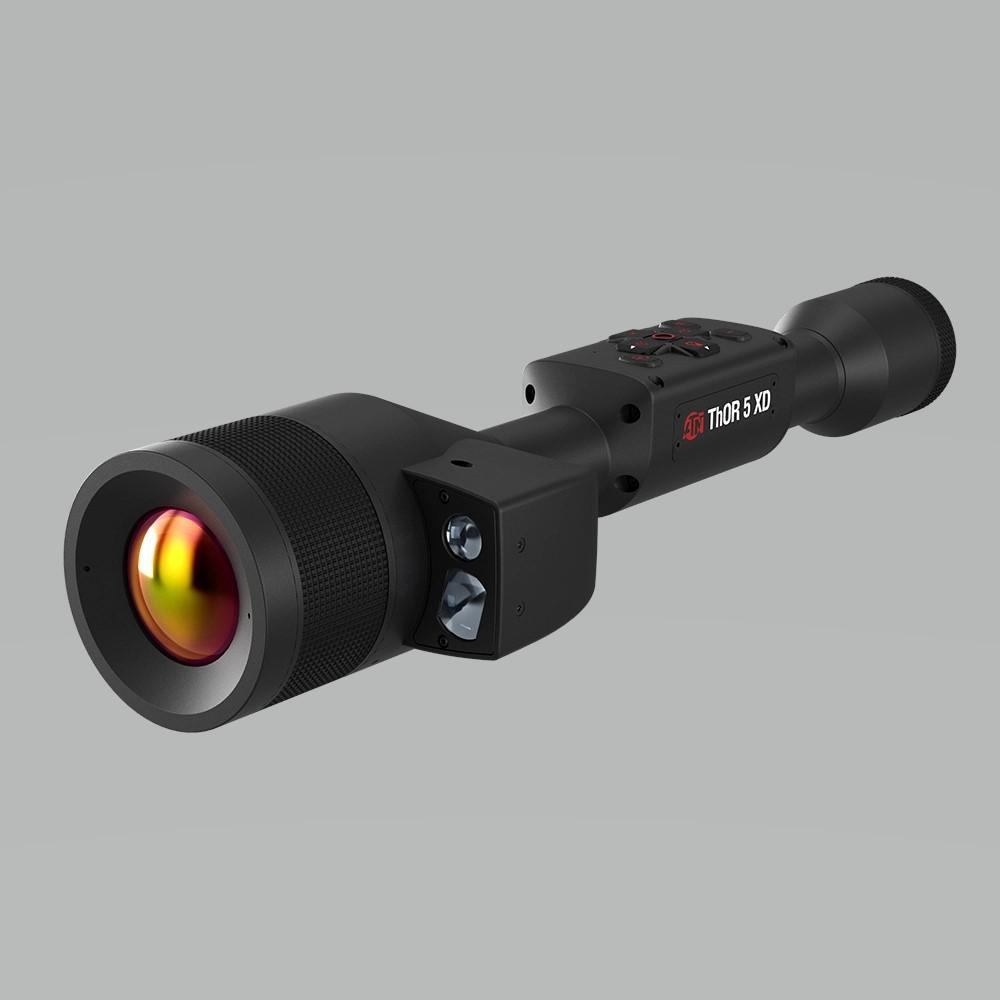

ATN Thor 5 XD LRF 2-20X Thermal Scope | TIWST51250LRF

The ATN Thor 5 XD LRF is a Gen‑5 thermal rifle scope with an integrated laser rangefinder and an ultra‑sensitive 1280×1024 12‑micron sensor at 60 fps. It offers a variable magnification range for flexible engagement from low to high magnification and supports on‑board HD video recording and wireless streaming. Built with a 30 mm mounting tube and a feature set that includes ballistic calculation and recoil‑activated recording, it is designed for demanding field use.

Typical applications include long‑range precision observation/target work and wildlife surveillance or nocturnal observation.

Product Specifications

• The model number is TIWST51250LRF.
• The manufacturer is ATN.
• The optics type is Thermal.
• The magnification range is 2–20x.
• The sensor resolution is 1280×1024 with a 12 micron pixel pitch and 60 fps frame rate.
• The device uses a 30 mm tube diameter for mounting.
• The scope includes a built‑in laser rangefinder: Yes.
• An on‑board ballistic calculator is Yes.
• Recoil‑activated video (RAV) functionality is Yes.
• Video record resolution is 1280 @ 60 fps.
• Wireless connectivity includes Wi‑Fi and Bluetooth for streaming and controls (iOS & Android).
• The mount type is 30 mm HP QDM.
• The battery size accepts 18650 Li‑ion rechargeable cells.
• The core/frame rate is 60 Hz.
• The UPC is 658175123590.

This scope pairs a high‑resolution thermal sensor with a comprehensive feature set — from integrated ranging to on‑board ballistics and video — to support extended field use and versatile mission profiles. Its configurable reticle options and custom reticle editor allow users to tailor aiming references to their workflow, while Wi‑Fi/Bluetooth connectivity and HD recording simplify documentation and review. The design balances capability and form factor for users seeking a full‑featured thermal optic.

Users commonly praise the Thor 5 XD for its “stunning image quality” and for offering a “smaller profile with a feature‑rich design.”
