ATN Thor 5 TIWST5319A 3-12x | 320×240 60 Hz

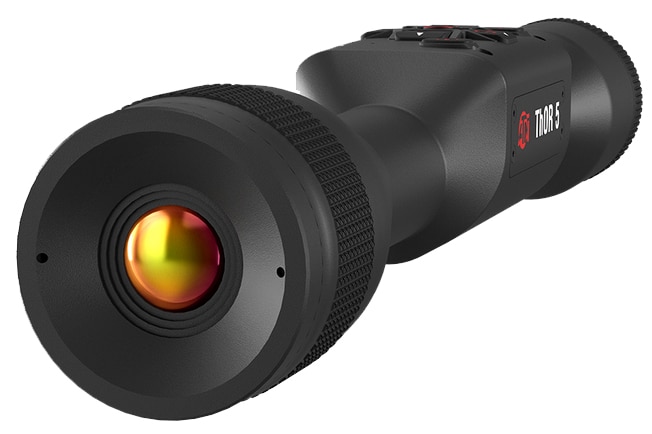

The ATN Thor 5 TIWST5319A is a Gen 5 thermal riflescope designed to provide high-resolution thermal imaging for low-light and no-light observation. It pairs a 320 x 240 thermal core with a Gen V Quad Core processor and a 1024 x 768 OLED microdisplay for detailed, real-time imagery. The scope offers a 3-12x zoom range, multiple user-customizable reticles, an onboard ballistic calculator and recoil-activated video recording.

Product Specifications

• The sensor provides 320 x 240 resolution with 12 µm pixels at 60 fps for thermal imaging.
• The magnification range is 3-12x for variable target observation.
• The objective lens is 19 mm in diameter.
• The tube diameter is 30 mm.
• The micro display is a 1024 x 768 OLED panel for clear onscreen viewing.
• The core processing is an ATN Gen V Quad Core system.
• The battery runtime is rated at 10+ hrs on a Li-ion pack.
• The unit records video at 1280 x 720 @ 60 fps (RAV supported).
• The display/frame update rate is 60 Hz for smooth motion.
• The reticle system offers multiple patterns and color options with a reticle editor for custom layouts.
• The scope includes an integrated ballistic calculator for range and holdover assistance.
• The scope supports RAV (Recoil Activated Video) to capture shots automatically.
• Connectivity includes Wi‑Fi (streaming, gallery & controls for iOS & Android) and Bluetooth.
• The eye relief measures 90 mm for comfortable cheek weld and sighting.
• The UPC is 658175123422.

The Thor 5 TIWST5319A is built for users who need reliable thermal imaging and advanced digital features in the field. Its combination of a high-refresh thermal core, a high-resolution OLED microdisplay and onboard tools such as the ballistic calculator and RAV make it well suited to night hunting and long-range observation tasks where thermal contrast and electronic data aid situational assessment. The user-customizable reticles and connectivity options provide flexible workflow whether you are recording encounters or streaming live to a mobile device.
