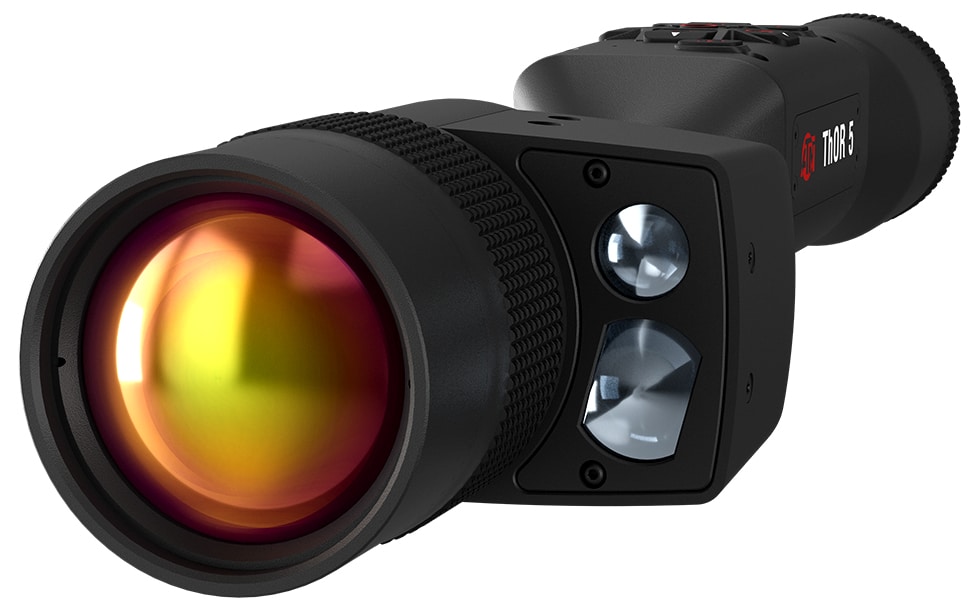

ATN Thor 5 LRF 4-32x Thermal Scope | 640×480 | TIWST5650LRF

The ATN Thor 5 LRF is a thermal rifle scope designed for extended-range observation and precision shooting. It combines a 640×480 12-micron thermal sensor with a 4-32x magnification range and ATN’s Gen 5 Quad-Core processing for responsive imaging and on-board computation. The scope includes a built-in laser rangefinder and supports video recording, wireless streaming, and reticle customization. Typical applications include wildlife observation and precision long-range target work.

Product Specifications

• The manufacturer is ATN.
• The model/part number is TIWST5650LRF.
• The magnification range is 4-32x.
• The thermal sensor resolution is 640×480 with a 12 micron pixel pitch.
• The frame rate is 60 fps.
• The core processor generation is a Gen 5 Quad-Core.
• The field of view is 8.80 x 6.60 degrees.
• The microdisplay resolution is 1024×768 OLED.
• The built-in laser rangefinder is included.
• The video record setting is listed as 1280 @ 60 fps in the provided data.
• The power source is a Li-ion battery with approximately 10+ hrs runtime.
• The reticle options are multiple patterns and colors with a reticle editor for custom reticles.
• The tube diameter is 30 mm.
• The operating temperature range is -20°F to +120°F.
• The UPC is 658175123576.

Designed for users who require advanced thermal imaging and integrated rangefinding, the Thor 5 LRF pairs a high-resolution 12-micron sensor with smart features such as on-board ballistics, RAV (recoil-activated video), and wireless streaming. Its Gen 5 platform and reticle editor support customization for field observation and precise long-range work, while the lithium-ion power system delivers extended operational time for extended outings.
