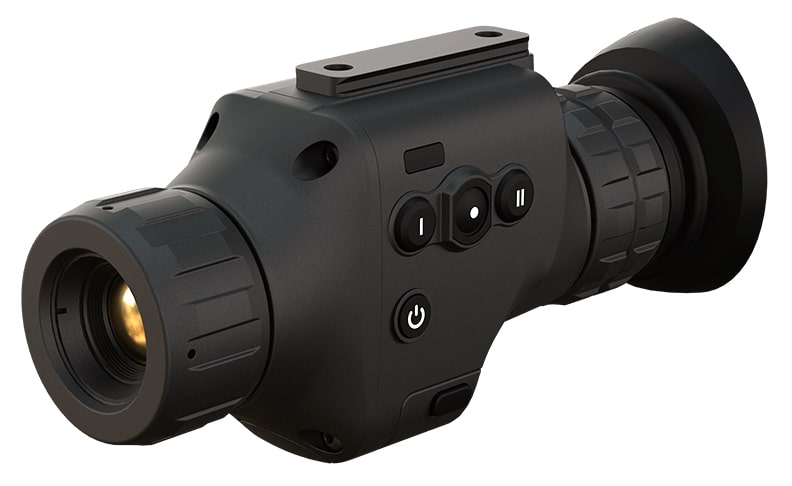

ATN ODIN LT 640 TIMNODN635X | 3-12x 35mm

The ATN ODIN LT 640 is a compact, hand-held and mountable thermal viewer powered by ATN’s Obsidian LT core. It uses a 640×480 thermal sensor with a 35 mm objective and a 3-12x magnification range for adaptable observation in low-visibility conditions. The unit is built for extended field use with weather-resistant construction and multiple power options including a CR123A cell and an optional rechargeable battery. Typical applications include wildlife observation and search-and-rescue or night navigation tasks where thermal detection and portability matter.

Product Specifications

• The manufacturer is ATN.
• The model/part number is TIMNODN635X.
• The core used is the Obsidian LT core.
• The sensor resolution is 640×480 running at 60 fps with a 12 um pixel pitch.
• The display resolution is 1280×960 px.
• The magnification range is 3-12x for variable observation distances.
• The objective lens is 35 mm.
• The field of view is 12.60 x 9.40 degrees.
• Controls are manual for straightforward operation.
• Battery runtime is listed as 2.5 hours, with an optional rechargeable battery offering 5 hours of runtime.
• Charging is provided via a USB Type-C port on the optional rechargeable battery.
• Dimensions are 145 x 71 x 51 mm.
• The weight is 342 g (12.06 oz).
• Human detection/recognition/identification ranges are listed as 1580, 720, and 350 respectively (units were not specified in the provided source).
• The UPC is 658175123743.
• The warranty period is 3 years.

The ODIN LT 640 pairs a compact, ergonomic form factor with a capable thermal core and multiple power options, making it a practical choice for extended observation and field work where low-light detection is required. Its mountable design and optional rechargeable battery increase versatility for hands-free or extended-duration tasks.
