ATN BLAZETREK 325 | Thermal Monocular 2.7-21x | TIMNBLT325

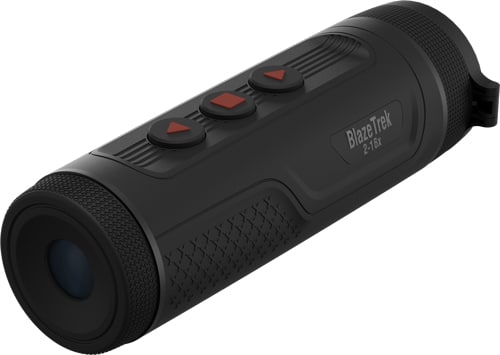

The ATN BlazeTrek 325 is a compact thermal imaging monocular designed for observation and long-range detection tasks. It offers variable magnification for flexible framing in the field and integrated recording and wireless connectivity for documenting observations. The unit is built for field conditions with a rechargeable battery and an IP67 rating for dust and water resistance.

Product Specifications

• The brand is ATN.
• The model is BlazeTrek 325.
• The manufacturer part number is TIMNBLT325.
• The thermal sensor resolution is listed as 384×288 in multiple manufacturer entries.
• The pixel size of the detector is 12 µm.
• The NETD (thermal sensitivity) is listed as <25 mK.
• The magnification range is 2.7–21x for variable observation distances.
• The frame rate is 50 Hz for smooth display performance.
• The display type is listed as AMOLED 800×600.
• The field of view is 10.9° x 8.2°.
• The eye relief is 15 mm.
• The battery system is an integrated rechargeable Li‑ion pack with USB‑C charging.
• The listed battery endurance is >7 hours under some manufacturer specifications.
• The ingress protection rating is IP67 for dust and water resistance.
• The UPC is 658175124702.

Compact, feature‑rich, and designed for extended field use, the BlazeTrek 325 puts thermal observation tools—variable magnification, recording, and wireless connectivity—into a pocketable package. It is well suited for wildlife observation and general outdoor situational awareness where reliable thermal imaging and onboard recording are valuable.
