ATN BlazeHunter Pro 3.5-28x 640×512 | TIMNBLH650LRF

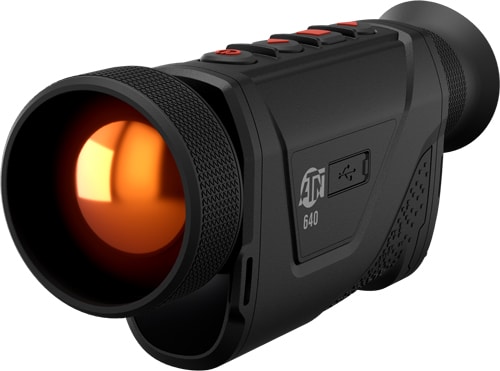

The ATN BlazeHunter Pro is a handheld thermal monocular designed for extended observation and practical field use. It pairs a 640×512 thermal sensor with a 3.5–28x zoom range and an integrated laser rangefinder to provide measurable situational data without additional devices. Built for outdoor conditions, the unit includes rechargeable batteries and an IP67 ingress protection rating for reliable operation in adverse environments. Typical applications include long-range wildlife observation and search-and-assessment tasks.

Product Specifications

• The sensor resolution is 640×512 pixels for detailed thermal imaging.
• The magnification range is 3.5-28x to support both wide-area scanning and focused observation.
• The objective lens measures 50 mm to optimize collection of thermal energy.
• The field of view is 8.7 x 6.9 degrees for the stated magnification range.
• The frame rate operates at 50 Hz for smooth thermal video and tracking.
• The thermal sensitivity (NETD) is listed as <18 mK with a 12 µm pixel pitch.
• The display resolution is 1440×1080 on a 0.41-inch OLED screen.
• The eye relief is 15 mm for comfortable viewing with and without eyewear.
• Available color modes include White Hot, Black Hot, High Red, Iron Red, Green Hot, and Sepia.
• The unit uses 18650 rechargeable batteries (qty 2 included) and provides a combined battery life of 14 hrs (noting approximately 7 hrs per battery).
• The package includes a rechargeable charger for onboard batteries.
• The environmental rating is IP67 for dust-tight and temporary immersion protection.
• The listed detection range is 2600 yards and the laser rangefinder (LRF) range is 1000 yards.
• The operating temperature range is -30°C to +50°C (-22°F to +122°F).
• The physical size is approximately 152 x 42 x 74 mm (5.98 x 1.67 x 2.93 in) and the weight without batteries is 0.8 lb (360 g).
• The manufacturer warranty term is 3 years.
• The UPC is 658175126294.

The BlazeHunter Pro consolidates key observation tools—thermal imaging, zoom, and a laser rangefinder—into a single, rugged handheld unit. Its combination of a high-resolution sensor, multiple color palettes, and rechargeable operation makes it practical for extended fieldwork and professional observation tasks where clear thermal detail and range data matter. Durable construction and an IP67 rating further support use in challenging outdoor conditions.
