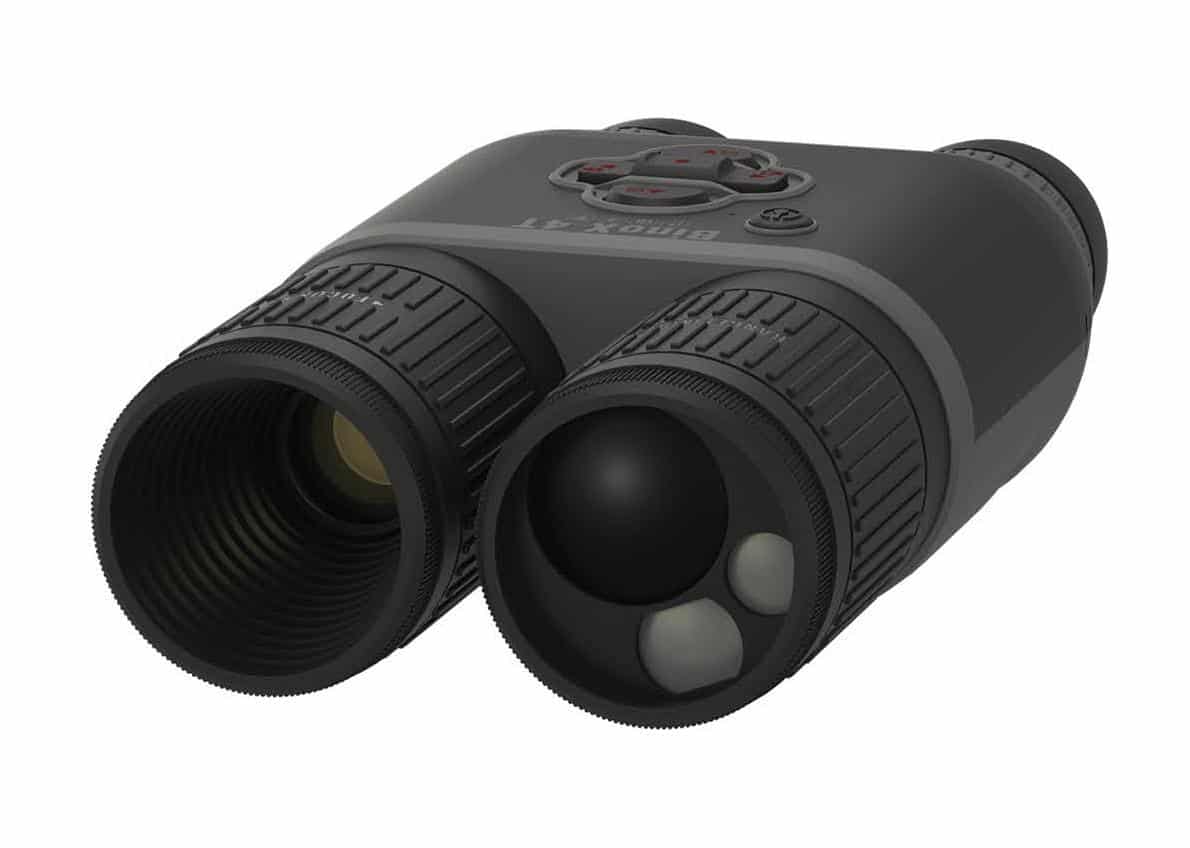

ATN BinoX 4T 1.25-5x Thermal Binocular | TIBNBX4381L

The ATN BinoX 4T is a handheld thermal binocular system that combines thermal imaging with an integrated laser rangefinder and onboard video recording. It provides variable magnification for close-to-mid distance observation and a compact form factor for field portability. Built for extended use, the unit includes an internal battery rated for more than 16 hours of operation depending on settings and conditions. Typical applications include wildlife observation and search-and-rescue or land navigation tasks where thermal detection and distance measurement are valuable.

Product Specifications

• The manufacturer is ATN (American Technologies).
• The model is BinoX 4T.
• The manufacturer’s part number is TIBNBX4381L.
• The magnification range is 1.25-5x.
• The thermal sensor resolution is 384×288.
• The objective lens is 19 mm.
• The recorded video resolution is 1280×720.
• It offers video record capability with files stored to an internal microSD slot.
• The unit includes a built-in laser rangefinder.
• The system includes BIX (Ballistic Information Exchange) technology for data exchange between compatible ATN devices.
• The binocular includes a built-in IR illuminator to assist compatible night-vision devices.
• The imaging/processing platform is powered by Obsidian IV Dual Core T.
• The internal battery provides a runtime of 16+ hours under typical settings.
• The weight is 3.5.
• UPC is 658175115618.

The BinoX 4T brings thermal imaging, ranging, and onboard recording into a single binocular package designed for practical field tasks. Its magnification range and 19 mm objective balance situational awareness with detail, while the Obsidian IV core and BIX connectivity add convenience for recording and data sharing. With long battery life and an integrated IR illuminator, this unit is configured to support extended observation sessions and documentation needs after dark.
