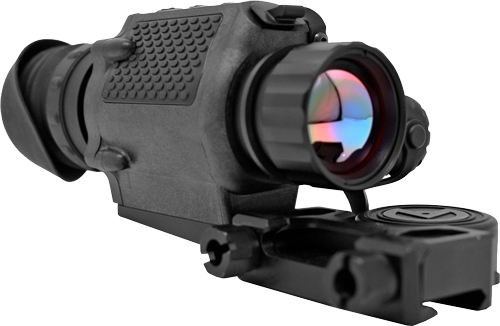

Armasight Collector Mini 640 1-4x25mm | TAVT66WN2COLL102

The Armasight Collector Mini 640 is a compact thermal sight designed for observation and target acquisition on small- to medium-caliber platforms. It combines a high-resolution thermal sensor with a 60Hz refresh rate and an electronic 1–4× zoom to provide smooth imaging and responsive tracking in low-visibility conditions. The unit includes onboard video and image capture with a USB‑C interface for exporting media and long-duration field use features such as inclinometer and multiple reticle options. Typical applications include nocturnal hunting and long-range observation.

Product Specifications

• The sensor resolution is 640×480.
• The refresh rate is 60Hz.
• The electronic zoom range is 1–4×.
• The objective diameter is 25mm.
• The unit supports video and image capture and provides a USB‑C interface for exporting recordings.
• The included mount is a QD mount for rapid attachment and removal.
• The reticle system offers 8+ reticle types with multiple color options and ON/OFF selection.
• The housing material is ULTEM composite.
• The unit features a 0.50 MOA boresight.
• Power options are listed as 2× CR123A or a 16650 battery.
• The listed eye relief is 45.
• The physical length is 10.1000.
• The width is 5.6000 and the height is 4.4500.
• The focus range is listed as 932 Meters.
• The UPC is 810081911702.

Compact and purposeful, the Collector Mini 640 balances sensor performance and field-ready ergonomics. Its combination of a 640×480 sensor and 60Hz refresh provides clear thermal imagery for extended observation periods, while onboard recording and USB‑C export make documentation straightforward. The ULTEM composite body and QD mount keep the package light and practical for systems where weight and quick attachment matter.
